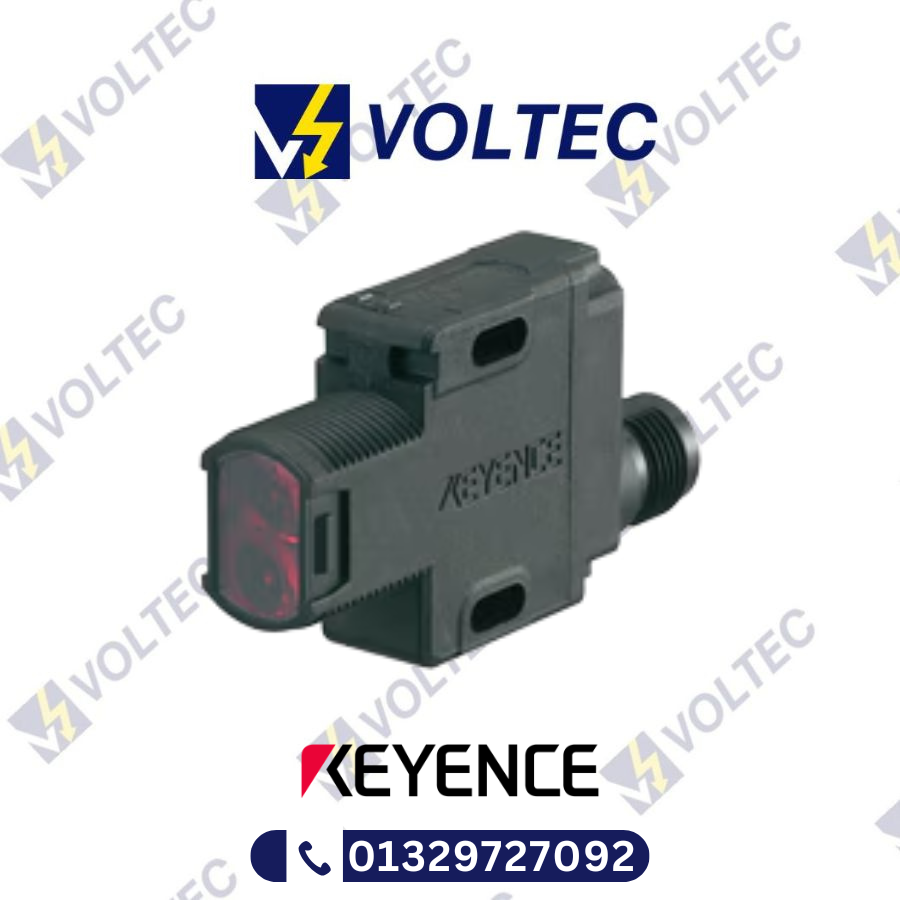

KEYENCE Photoelectric Sensors | PZ-G61CB
Description
KEYENCE Photoelectric Sensors | PZ-G61CB
KEYENCE Photoelectric Sensors
KEYENCE Photoelectric Sensors Supplier in Bangladesh
PZ-G
Self-contained Threaded Sensors
The PZ-G Series is a general purpose photoelectric sensor in a resin housing with high power and easy trimpot adjustment. It has a range of up to 40m (131.2′) and offers hard wired, M8 connector, and M12 connector cable options.
Technical details-
| Property | Value |
| Model | PZ-G61CB |
| Type | Retro-reflective, Long-range (with P.R.O. function)*2 |
| Shape | Threaded |
| Output | Bipolar (NPN+PNP) |
| Cable connection | M12 connector *1 |
| Detecting distance | 0.1 to 4.2 m 0.3′ to 13.8′ (When R-2L reflector is used) |
| Spot diameter | ― |
| Light source | Red LED |
| Sensitivity adjustment | 1-turn trimmer (230°) |
| Response time | 500 µs |
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
| Indicators (LED) | Output: Orange LED, Stable operation: Green LED |
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. |
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
| Interference suppression | Up to 2 units (with the automatic different frequency function) |
| Tightening torque | Threaded models (front M18 part): 1.0 N m max., (side slotted hole part): 0.5 N m max. |
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % |
| Current consumption | 34 mA or less |
| Enclosure rating | IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K |
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) |
| Relative humidity | 35 to 85 % RH (No condensation) |
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
| Housing, M18 nut Material | Glass-fiber reinforced PBT |
| Lens cover Material | Polyarylate (PAR) |
| Trimmer Material | Glass-fiber reinforced polyamide (PA) |
| Case connection Material | Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) |
| Connector Material | ― |
| Accessories | Instruction manual, M18 nut x 1 piece (threaded models only) |
| Weight | Threaded connector models: Approx. 15 g |
*1 Cable sold separately for connector models
*2 Cable sold separately for connector models/pigtail quick disconnect models. Reflector sold separately for retro-reflective models.
Datasheet: PDF
