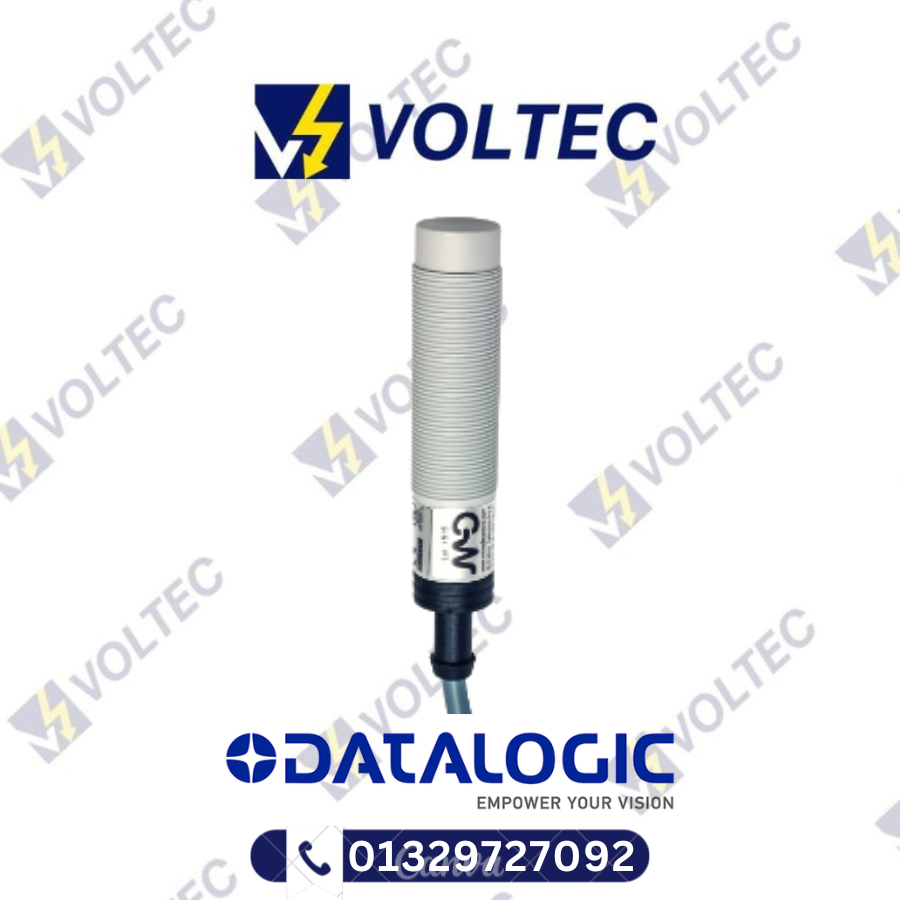

DATALOGIC/DATASENSING Capacitive Proximity Sensors | C18P/BN-2A
- Sensing range (max.): 3 – 12mm
- Connection type: 2m PVC cable
- Switching output: NPN
- Output function: NO+NC
- Switching frequency: 50 Hz
- Installation type: Unshielded
For Price Call: 01329727092
Email: sales@voltecbd.com
Description
DATALOGIC/DATASENSING Capacitive Proximity Sensors | C18P/BN-2A
DATALOGIC/DATASENSING Capacitive Proximity Sensors
DATALOGIC/DATASENSING Capacitive Proximity Sensors supplier in Bangladesh
C18
Detection of all types of materials: solids, liquids, powders.
- DC or AC supply voltage
- High noise immunity
- Shielded and unshielded models
- Adjustable sensitivity
- Plastic housing
- DC or AC supply voltage
- High noise immunity
- Shielded and unshielded models
- Adjustable sensitivity
- Plastic housing
Technical details-
| Nominal sensing distance | 3…12mm |
| Thermal drift of Sr | < 20% |
| Repeat Accuracy | 5% |
| Sensitivity adjustment | Yes |
| Hysteresis | ≤ 20% |
| Output type | NPN |
| Output Function | NO + NC |
| Switching frequency | 50Hz |
| Operating Voltage | 10…40Vdc |
| No-Load supply current | ≤ 12mA |
| Load current | ≤ 200mA |
| Leakage current | ≤ 100µA |
| Output voltage drop | ≤ 2,5V @ IL = 200mA |
| Max ripple content | ≤10% |
| LED indicators | Yellow LED (object detected) |
| Time delay before availability | ≤ 200ms |
| Short-circuit protection | polarity reversal, overvoltage |
| Reverse Polarity Protection | Yes |
| Impulsive Overvoltage Protection | Yes |
| Dimensions | M18 x 1 / L = 99mm |
| Mounting | Unshielded |
| Housing material | Polyester |
| Weight | 150g |
| Connections | 2m PVC cable |
| Active Head Material | Polyester |
| Tightening torque | 2,6Nm |
| Operating temperature | -35°C…+85°C (without freeze) |
| Storage temperature | -40°C…+85°C |
| Diameter/Dimension | M18 |
Datasheet: PDF
