SICK MPA-431THTU0

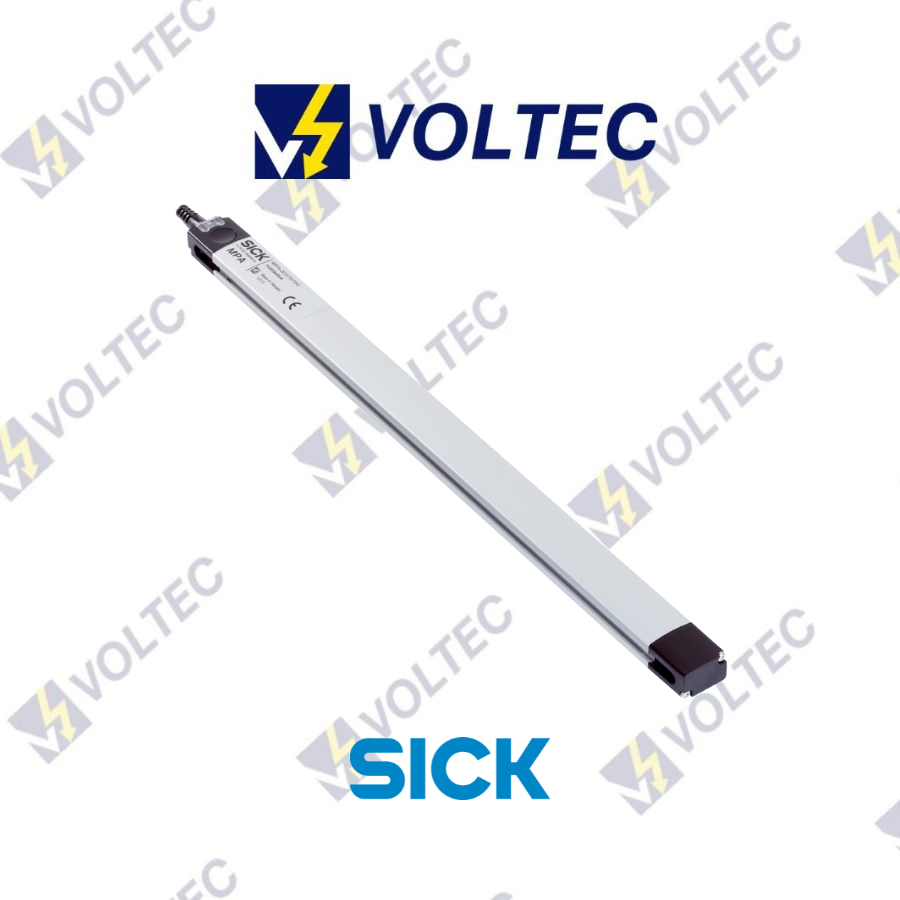

SICK Cylinder Sensor MPA-431THTU0 Part no.: 1059461

Measuring range: 431mm

Cylinder types with adapter:

  • Round body cylinder
  • Tie rod cylinder
  • T-slot cylinders
  • Festo cylinders DSBC
  • SMC cylinders CP96



Category:
Tag:

Description

SICK Cylinder Sensor MPA-431THTU0 Part no.: 1059461

SICK Cylinder sensors

MPA

Position sensors for large cylinders

MPA position sensors continuously detect the piston position of pneumatic actuators using a direct, non-contact method. The sensors in the MPA product family are ideal for large piston diameters and long strokes. The sensor settings can be adjusted during installation and during operation later on, using a teach field or – depending on the variant – using IO-Link. The sensors continuously supply data via analog outputs or IO-Link, enabling flexible machine concepts and making it possible to solve tasks in areas such as quality monitoring and process control in conjunction with pneumatic cylinders and drives. This continuous transfer of position data upgrades the functionality of the pneumatic cylinders by making them more intelligent – and, as a result, more versatile.

MPA AT A GLANCE

Benefits

Straightforward installation as no position elements or additional mechanical components are required for coupling with the piston rod
Can be integrated into the machine at any time, as the sensor is attached to the cylinder externally
Easy adjustment of sensor settings and parameters during operation using a teach pad or IO-Link
More flexibility compared to conventional cylinder sensors, as it is possible to define multiple switching points in the smallest of spaces
Maximum reliability thanks to the rugged aluminum housing and non-contact measurement principle
Advanced diagnostic options thanks to data transmission via IO-Link

Features

Position sensor for use on pneumatic cylinders
Sensor variants with measuring ranges of 107 mm to 1,007 mm
Analog outputs (for current or voltage), switching output, and IO-Link
Mounting with adapters on a multitude of cylinder types (tie-rod cylinders, round body cylinders, profile cylinders)

Technical details

Features

Cylinder type Universal
Cylinder types with adapter Round body cylinder

Tie rod cylinder

T-slot cylinders

Festo cylinders DSBC

SMC cylinders CP96
Measuring range 431 mm 1)
Housing length 433 mm
Output function Analog, IO-Link
Electrical wiring DC 4-wire
Analog output (voltage) 0 V … 10 V
Analog output (current) 4 mA … 20 mA 2)
Enclosure rating IP65 3)

IP67

IP68
Adjustment
Teach-in control panel Teaching in the measuring range
Selecting the current/voltage output or IO-Link
Resetting the measuring range to factory settings
IO-Link Teaching in the measuring range
Resetting the measuring range
IO-Link functions Standard functions

1) ± 1 mm.

2) Default setting: Current output active.

3) According to EN 60529.

Mechanics/Electronics

Supply voltage 15 V DC … 30 V DC
Power consumption 35 mA, without load
Max. load resistance ≤ 500 Ω Power Output, at 24 V
Min. load resistance ≥ 2 kΩ 1)
Protection class III
Required magnetic field sensitivity, typ. 2 mT … 15 mT
Resolution, typ. 0.03 % FSR (max. ≥ 0.06 mm) 2)

3)
Linearity error, typ. 0.5 mm 4)
Repeat accuracy, typ. 0.06 % FSR (≥ 0.1 mm) 5)
Sampling rate, typ. 1.15 ms 6)
Reverse polarity protection Yes
Short-circuit protection Yes
Status indicator LED Yes
Teach-in Yes
Ambient operating temperature –20 °C … +70 °C
Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm
EMC According to EN 60947-5-2 7)
Connection type Cable, 4-wire, stripped, 2 m
Connection type Detail
Deep-freeze property Do not bend below 0 °C
Conductor cross section 0.08 mm²
Cable diameter Ø 2.6 mm
Bending radius With fixed installation > 5 x cable diameter
For flexible use > 10 x cable diameter
Cable outlet Axial
Material
Housing Metal, Aluminum
Plastic
Cable PUR
UL File No. NRKH.E181493 & NRKH7.E181493

1) Voltage output.

2) FSR: Full Scale Range; max. measuring range.

3) When using IO-Link, the resolution is 0.25 mm.

4) At 25 ° C, linearity error (maximum deviation) depending on response curve and minimal deviation function.

5) At 25 ° C, repeatability magnet movement in one direction.

6) Only in standard mode, not in IO-Link mode.

7) The analog measured value can deviate under transient conditions.



Datasheet: PDF
