SICK WLA16P-X01

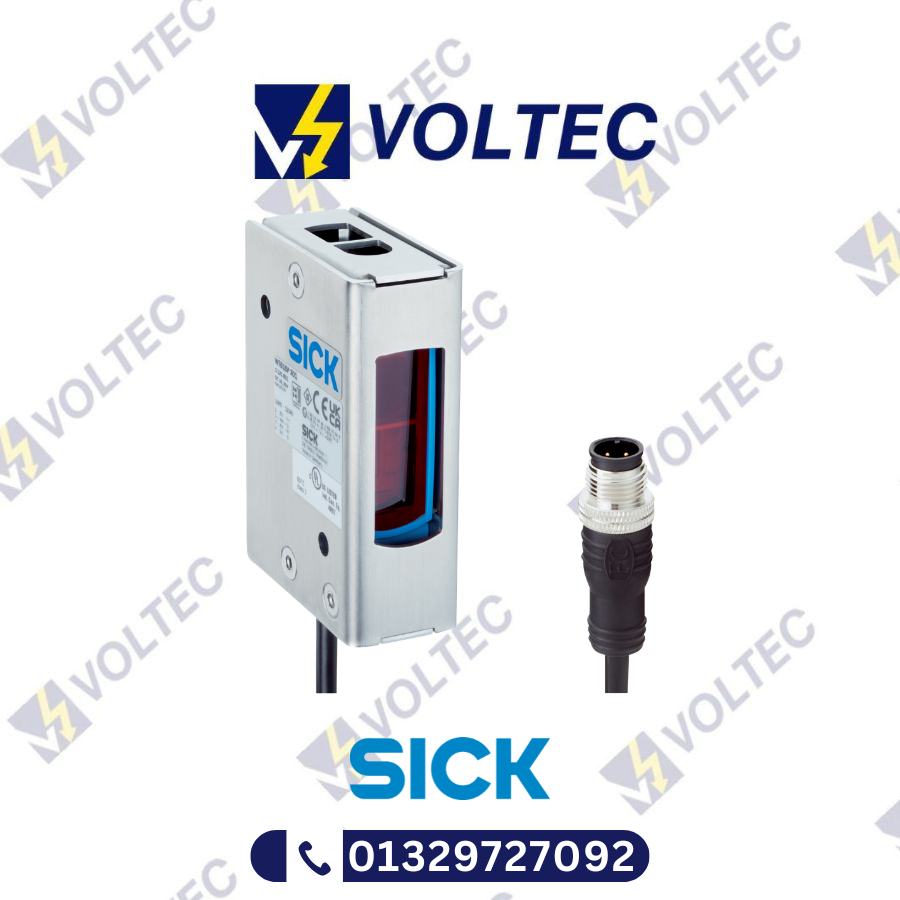

SICK Photoelectric Sensors WLA16P-X01 | Part no: 1131853

  • Functional principle: Photoelectric retro-reflective sensor
  • Sensing range: 0 m – 10 m
  • Connection type: Cable with plug M12, 4-pin, 318 mm
  • Output Type: Push-pull: PNP/NPN
  • Switching frequency: 1000 Hz
  • Switching mode: Light/dark switching



For Price Call: 01329727092
Email: sales@voltecbd.com
Category:
Tags:

Description

SICK Photoelectric Sensors WLA16P-X01 | Part no: 1131853

SICK Photoelectric Sensors

SICK Photoelectric Sensors Supplier in Bangladesh

W16

The highflier in object detection

Depending on the variant, the W16 is equipped with new technologies such as TwinEye, LineSpot and ClearSens for reliable object detection. It can be quickly and conveniently adjusted via the BluePilot operating and display concept. Every W16 can be configured for the specific application via IO-Link and also offers diagnostic functions. Well-visible red PinPoint LEDs and infrared LEDs serve as the light source. The W16 sensors deliver reliable detection thereby reducing unplanned machine downtimes. Ready-to-install variants with metal housings are available for explosion-hazardous areas that meet the requirements of device categories 3D and 3G according to ATEX.



W16 AT A GLANCE

Benefits
  • Fault-free system operation thanks to rugged and reliable object detection with Optical Experts
  • The all-in-one photoelectric proximity sensor, WTM16F, for various applications reduces storage and handling effort, saves costs and simplifies processes
  • Solution for challenging detection tasks thanks to different light sources
  • Intuitive and quick commissioning, alignment and adjustment
  • Protection from disruptive environmental influences
Features
  • TwinEye, LineSpot, ClearSens, Spot Size Recognition
  • Two independent switching points, fast distance value output, DustAlert
  • Powerful, highly visible LEDs: PinPoint-Pro, PinPoint; infrared
  • Optical alignment aid, Teach-Turn adjustment, IO-Link
  • –40 °C … +60 °C, sensor variants according to category 3D and 3G

Technical details-

Features

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Without reflector minimum distance (autocollimation/coaxial optics)
Sensing range
Sensing range min. 0 m
Sensing range max. 10 m
Maximum distance range from reflector to sensor (operating reserve 1) 0 m … 10 m
Recommended distance range from reflector to sensor (operating reserve 3,75) 0 m … 7 m
Reference reflector Reflector PL80A
Recommended sensing range for the best performance 0 m … 7 m
Polarisation filter Yes
Emitted beam
Light source PinPoint LED
Type of light Visible red light
Shape of light spot Point-shaped
Light spot size (distance) Ø 80 mm (5 m)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.0° (at TU = +23 °C)
Key LED figures
Normative reference EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking Free group
Wave length 635 nm
Average service life 100,000 h at Ta = +25 °C
Adjustment
IO-Link For configuring the sensor parameters and Smart Task functions
Display
LED blue BluePilot: Alignment aid
LED green Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow Status of received light beam
Static on: object not present
Static off: object present
Flashing: Below the 1.5 function reserve
Special applications Detecting objects wrapped in film, Explosive areas



Electronics

Supply voltage UB 10 V DC … 30 V DC 1)
Ripple ≤ 5 Vpp
Usage category DC-12 (According to EN 60947-5-2)

DC-13 (According to EN 60947-5-2)
Current consumption ≤ 30 mA, without load. At UB = 24 V
Protection class III
Digital output
Number 2 (Complementary)
Type Push-pull: PNP/NPN
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V
Output current Imax. ≤ 100 mA
Circuit protection outputs Reverse polarity protected
Overcurrent and short-circuit protected
Response time ≤ 500 µs 2)
Repeatability (response time) 150 µs
Switching frequency 1,000 Hz 3)
Pin/Wire assignment
Function of pin 4/black (BK) Digital output, light switching, object present → output QL1 LOW; IO-Link communication C 4)
Function of pin 4/black (BK) – detail The pin 4 function of the sensor can be configured
Additional possible settings via IO-Link
Function of pin 2/white (WH) Digital output, dark switching, object present → output ǬL1 HIGH 4)
Function of pin 2/white (WH) – detail The pin 2 function of the sensor can be configured
Additional possible settings via IO-Link

1) Limit values.

2) Signal transit time with resistive load in switching mode.

3) With light/dark ratio 1:1.

4) This switching output must not be connected to another output.

Datasheet: PDF

More Photoelectric sensors:

SICK WTB16P-X01 Part NO: 1131851, SICK WTM16F-24161120A00 Part NO: 1157440, SICK WTB16I-X02 Part NO: 1131852, SICK WTS16P-24161120A00 Part NO: 1218663, SICK WTB16I-24161120A00 Part NO: 1218669, SICK WTB16I-39111120ZZZ Part NO: 1222708, SICK WTB16I-1H161120A00 Part NO: 1218818, SICK WTS16G-24161920A00 Part NO: 1128823, SICK WLA16P-1H162100A00 Part NO: 1218826, SICK WSE16P-24162100A00 Part NO: 1088329, SICK WLA16P-24162100A00 Part NO: 1220904, SICK WTB16P-24161120A00 Part NO: 1220992, SICK WTB16I-24161420A00 Part NO: 1222707, SICK WLA16P-39722100ZZZ Part NO: 1222789, SICK WTB16I-24161121A00 Part NO: 1103234, SICK WTB16I-34115120ZZZ Part NO: 1222799, SICK WSE16P-24161100A00 Part NO: 1129966, SICK WTS16P-24161300CZZ Part NO: 1111622, SICK WTS16P-1H161120A00 Part NO: 1110178, SICK WTB16P-34161120A00 Part NO: 1218817, SICK WLG16P-84162120A00 Part NO: 1222694, SICK WSE16P-1H162100A00 Part NO: 1088331, SICK WLD16P-1H1121A0ZZZ Part NO: 1221730, SICK WSE16P-39112100ZZZ Part NO: 1102908, SICK WLA16P-2416L100A00 Part NO: 1222701, SICK WLG16P-24162121A00 Part NO: 1223082, SICK WLA16P-24161100A00 Part NO: 1220993, SICK WTB16I-39112120ZZZ Part NO: 1222674, SICK WTL16P-24861120A00 Part NO: 1125468, SICK WTS16I-24161120A00 Part NO: 1137245, SICK WLG16P-24862120A00 Part NO: 1130258, SICK WSE16P-34161100A00 Part NO: 1099456, SICK WTB16I-1H162120A00 Part NO: 1221723, SICK WTS16P-24162320CZZ Part NO: 1113997, SICK WTS16P-24161300CZZ Part NO: 1111624, SICK WTB16P-24161220A00 Part NO: 1218698, SICK WTB16P-24167120A00 Part NO: 1124855, SICK WTB16I-2416A121A00 Part NO: 1223231, SICK WLA16P-34161100A00 Part NO: 1221729, SICK WTL16P-1H161120A00 Part NO: 1218946, SICK WLA16P-1I722100ZZZ Part NO: 1222787, SICK WLA16P-3416N100A00 Part NO: 1222673, SICK WTF16P-24161220A00 Part NO: 1113467, SICK WSE16P-34162100A00 Part NO: 1088330, SICK WLA16P-2486A100A00 Part NO: 1125598, SICK WTB16P-84161120A00 Part NO: 1222714, SICK WTB16I-24161122A00 Part NO: 1222794, SICK WLG16P-1H162120A00 Part NO: 1218948, SICK WLA16P-24162100A00 Part NO: 1218660, SICK WTS16P-24161300CZZ Part NO: 1111625, SICK WTB16I-24162120A00 Part NO: 1221724, SICK WTB16P-6H161120A00 Part NO: 1222716, SICK WLA16P-39421100ZZZ Part NO: 1222700, SICK WTB16P-24162120A00 Part NO: 1220916, SICK WTB16P-24161122A00 Part NO: 1111626, SICK WTB16P-1H161220A00 Part NO: 1218820, SICK WTB16P-34161220A00 Part NO: 1218821, SICK WTB16I-34161120A00 Part NO: 1218819, SICK WTS16P-24161300CZZ Part NO: 1111623, SICK WSE16P-24163100A00 Part NO: 1110738, SICK WTB16P-24168120A00 Part NO: 1222721, SICK WSE16G-24162400A00 Part NO: 1127146, SICK WTB16P-24161420A00 Part NO: 1158294, SICK WSE16P-24162100A00 Part NO: 1116792, SICK WTB16P-24161720A00 Part NO: 1120338, SICK WLA16P-6H162100A00 Part NO: 1222699, SICK WLG16P-84161120A00 Part NO: 1222693, SICK WTF16P-24161420A00 Part NO: 1113468, SICK WLA16P-1HG12100ZZZ Part NO: 1153138, SICK WTB16P-2416N420A00 Part NO: 1222718, SICK WLG16P-2416H120A71 Part NO: 1220929, SICK WLD16P-241121A0ZZZ Part NO: 1218662, SICK WLG16P-34162120A00 Part NO: 1218947, SICK WTL16P-24161120A00 Part NO: 1218670, SICK WTB16I-24114120ZZZ Part NO: 1222795, SICK WTS16P-24161320CZZ Part NO: 1111636, SICK WTB16P-1H162120A00 Part NO: 1221725, SICK WLA16P-24165100A00 Part NO: 1222703, SICK WTB16I-84161120A00 Part NO: 1222720, SICK WTS16P-1H161120A00 Part NO: 1218944, SICK WTF16P-34161220A00 Part NO: 1121520, SICK WLG16P-24165120A00 Part NO: 1222733, SICK WTB16I-24162120A00 Part NO: 1222181, SICK WTB16I-24811X20ZZZ Part NO: 1120337, SICK WSE16I-24162100A00 Part NO: 1088326, SICK WTB16I-6H161120A00 Part NO: 1222719, SICK WLA16P-2416A100A00 Part NO: 1222702, SICK WSE16P-1H161100A00 Part NO: 1099442, SICK WLD16P-241125A0ZZZ Part NO: 1120335, SICK WTB16I-24161120A00 Part NO: 1222706, SICK WLG16P-24167120A00 Part NO: 1135715, SICK WTB16P-24161120A00 Part NO: 1218626, SICK WTL16P-24162120A00 Part NO: 1131249, SICK WLA16P-24161100A00 Part NO: 1221053, SICK WTL16P-34161120A00 Part NO: 1218945, SICK WLA16P-34162100A00 Part NO: 1218815, SICK WLA16P-39X22100SZZ
