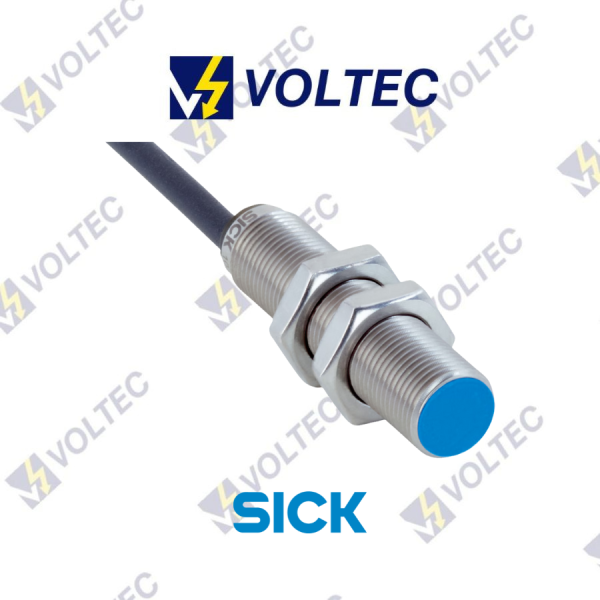

SICK Inductive Proximity Sensor IMS12-04BNONU2S | 1103206
- Diameter: Ø 12mm
- Sensing Range Sn : 4mm
- Switching Output: NPN/NC
- Installation Type: Flush
Description
SICK Inductive Proximity Sensor IMS12-04BNONU2S | 1103206
Inductive Proximity Sensor Part No: 1103206
Inductive standard sensors for economical use in industrial environments
SICK’s inductive sensors offer precise detection, less downtime and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values – for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
IMS Inductive sensors for mobile machines
The IMS inductive proximity sensors combine tried-and-tested, rugged SICK mechanics with advanced electronics. With the E1 type approval by the German Federal Motor Transport Authority, the sensors are especially well-suited for use in mobile machines. The IMS products feature protection against load dump, electromagnetic compatibility and a large voltage range of 7.2 V to 60 V DC. Versions with connecting cables offer enough hold for mobile male connectors due to the oil-resistant material and a 0.5 mm² cross section of these cables. The ambient temperature range is from –40 °C to +100 °C, thereby enabling sensor function in any weather.
IMS AT A GLANCE
Benefits
- Maximum operating times due to rugged sensor technology, even in harsh environments that are subjected to severe weather conditions
- Stable and fault-free processes thanks to high electromagnetic compatibility and very precise detection
- Extensive portfolio with application-specific special variants
- Worldwide availability due to global SICK sales network and countless approvals
Features
- Thread sizes: M12 to M30
- Large sensing ranges: 4 mm to 20 mm
- Electrical configuration: DC, 3-wire
- Enclosure rating: IP68, IP69K
- Ambient temperature: –40 °C to +100 °C
- Rugged stainless-steel housing; plastic sensing face
- Load dump protection and high electromagnetic compatibility of 100 V/m
- E1 type approval
Technical details
Features
| Housing | Metric |
| Housing | Standard design |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Switching output | NPN |
| Switching output detail | NPN |
| Output function | NC |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP68 1)
IP69K 2) |
| Special features | Resistant to cleaning agents, Temperature resistance |
| Special applications | Mobile machines, Hygienic and washdown zones, Difficult application conditions |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
1) According to EN 60529.
2) According to ISO 20653:2013-03.
Mechanics/electronics
| Supply voltage | 7.2 V DC … 60 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2.5 V 1) |
| Time delay before availability | 100 ms |
| Hysteresis | 3 % … 20 % |
| Reproducibility | ≤ 2 % 2) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | Emitted interference and interference immunity in accordance with Motor Insurance Directive ECE-R10 Rev. 5: E1-Type approval
Interference immunity in accordance with DIN ISO 11452-2: 100 V/m AM vertical 20 MHz – 800 MHz; AM horizontal 200 MHz – 800 MHz; PM vertical/horizontal 800 MHz – 2.7 GHz Conducted disturbances in accordance with ISO 7637-2 (pulse/severity/failure criterion 12 V/failure criterion 24 V): 1/IV/C/C, 2a/IV/A/A, 2b/IV/C/C, 3a/IV/A/A, 3b/IV/A/A, 4/IV/C/A, 5a/IV/B/B, 5b/IV/B/B EN 61000-4-2 ESD: 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated: 10 V/m EN 61000-4-4 burst: 2 kV EN 61000-4-5 surge: 0,5 kV L-to-L, Ri: 2 Ohm EN 61000-4-6 HF wire-bound: 10 V |
| Environmental test | Quick temperature change EN 60068-2-14, Na: TA = –25 °C, TB = 75 °C, t1 = 40 min, t2 = < 10 s, 300 cycles, Delta Sr ≤ 10% |
| Corrosion test | Salt spray test EN 60068-2-52: severity 5, 4 cycles |
| Continuous current Ia | ≤ 200 mA 3) |
| No load current | ≤ 10 mA |
| Cable material | PUR |
| Conductor size | 0.5 mm² |
| Cable diameter | Ø 5 mm |
| Short-circuit protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | Vibration resistance EN 60068-2-6 Fc: 25 g peak (10 Hz … 2,000 Hz) / –20 °C … +50 °C
Shock resistance EN 60068-2-27 Ea: 100 g 11 ms; 3 shocks in every direction of the 3 coordinate axes / –40 °C … +85 °C Continuous shock resistance EN 60068-2-29 Eb: 40 g 3 ms rise, 7 ms fall / 5,000 shocks in every direction of the 3 coordinate axes / -20 °C … +50 °C Broadband noise EN 60068-2-64: 15 g rms (5 Hz … 2,000 Hz) / 8 hours in every direction of the 3 coordinate axes / –40 °C … +85 °C |
| Ambient operating temperature | –40 °C … +100 °C |
| Housing material | Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material | Plastic, LCP |
| Housing length | 56 mm |
| Thread length | 51 mm |
| Tightening torque, max. | Typ. 20 Nm |
| Protection class | III |
| UL File No. | E181493 |
1) At Ia max.
2) Supply voltage UB and constant ambient temperature Ta.
3) See “Continuous current Ia above temperature” characteristic curve.
Data Sheet: PDF
