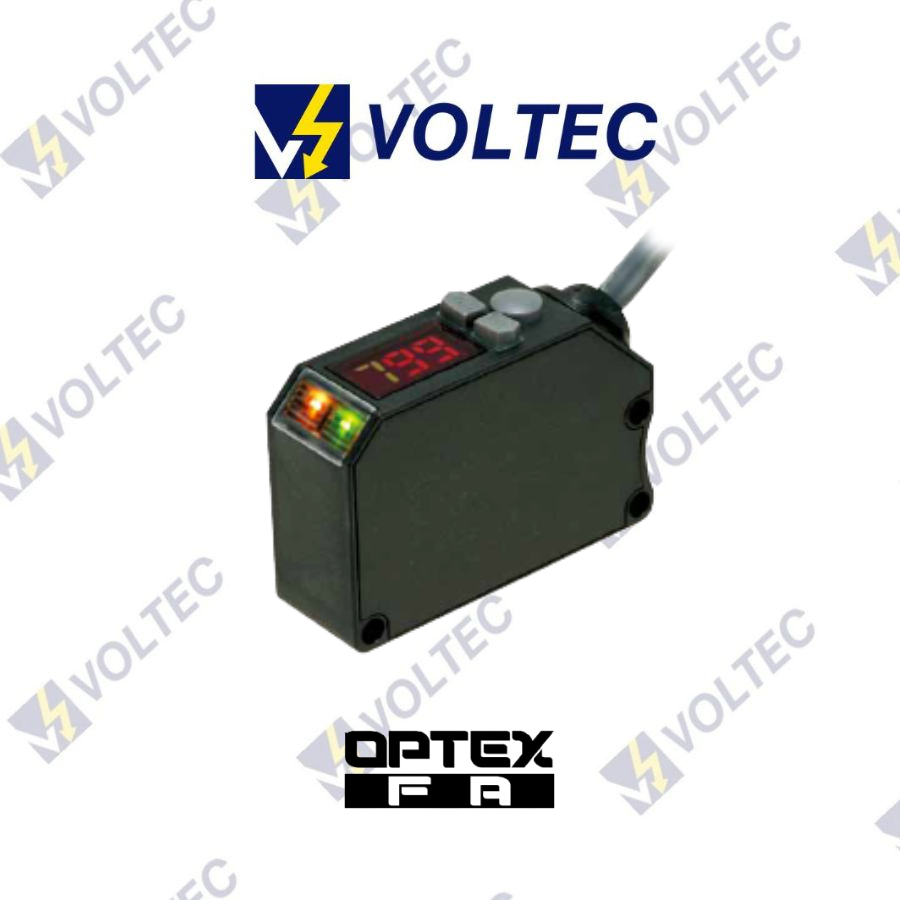

OPTEX DM-18TN Digital Color/Mark Detection Sensor
RGB color/mark sensor for automatically selecting light source color
- 3-color (red, green, blue) light source switching function
- Threshold value digital adjustment function
- 8-bank switching function
Description
OPTEX DM-18TN Digital Color/Mark Detection Sensor
Lineup
| Type | Shape | Sensing distance | Bank function | Model | |
|---|---|---|---|---|---|
| NPN type | PNP type | ||||
| Color/ mark detection type |
 |
 |
8CH | DM-18TN | DM-18TP |
Specifications
| Type | Color/mark detection | |
|---|---|---|
| Model | NPN | DM-18TN |
| PNP | DM-18TP | |
| Sensing distance | 18 ± 2 mm | |
| Light source | R / G / B Mark mode: 1 color selection during teaching Color mode: 3 color simultaneous illumination |
|
| Spot size | Approx. 1 × 6 mm at a distance of 18 mm | |
| Response time | Mark mode: 0.25, 0.5, 1.2 ms switching Color mode: 0.8, 1.6, 4 ms switching |
|
| Distance adjustment | Mark mode: 2-point teaching, auto-teaching Color mode: 1-point teaching |
|
| Threshold adjustment | Manual adjustment is possible after teaching | |
| Indicators | Output indicator (orange), Stability indicator (green) | |
| Digital display | 7-segment, 3-digit display | |
| Control output | NPN/PNP open collector Max. 100 mA/30 VDC | |
| External input | 8-bank switching | |
| Timer function | ON delay / OFF delay / One-shot 0 to 990 ms (setting is possible in 10 ms increments), 1 to 10 s (setting is possible in 1 s increments) |
|
| Output mode | Light ON (output when matched) / Dark ON (output when mismatched) selectable by setting* | |
| Connection type | Cable type: Cable length: 2 m ø4 mm | |
| Insulation resistance | 20 MΩ or more (with 500 VDC) | |
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) |
| Current consumption | 40 mA | |
| Applicable regulations | EMC directive (2004/108/EC) | |
| Applicable standards | EN 60947-5-2 | |
| Company standards | Noise resistance: Feilen Level 3 cleared | |
| Environmental resistance |
Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) |
| Ambient illuminance | Sunlight: 10,000 lx or less Incandescent light: 3,000 lx or less | |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
|
| Shock resistance | Approx. 50 G (500 m/s2), 3 times in each of the X, Y, and Z directions |
|
| Degree of protection | IP67 | |
| Material | Housing: ABS Lens front cover: PMMA | |
| Weight (including cable) | Approx. 75 g | |
| Included accessories | Mounting bracket: BEF-WK-190 | |
•Specifications are subject to change without prior notice for product improvement purposes.
*During mark mode 2-point teaching, the first point color becomes the ON color.
