Leuze 50137052

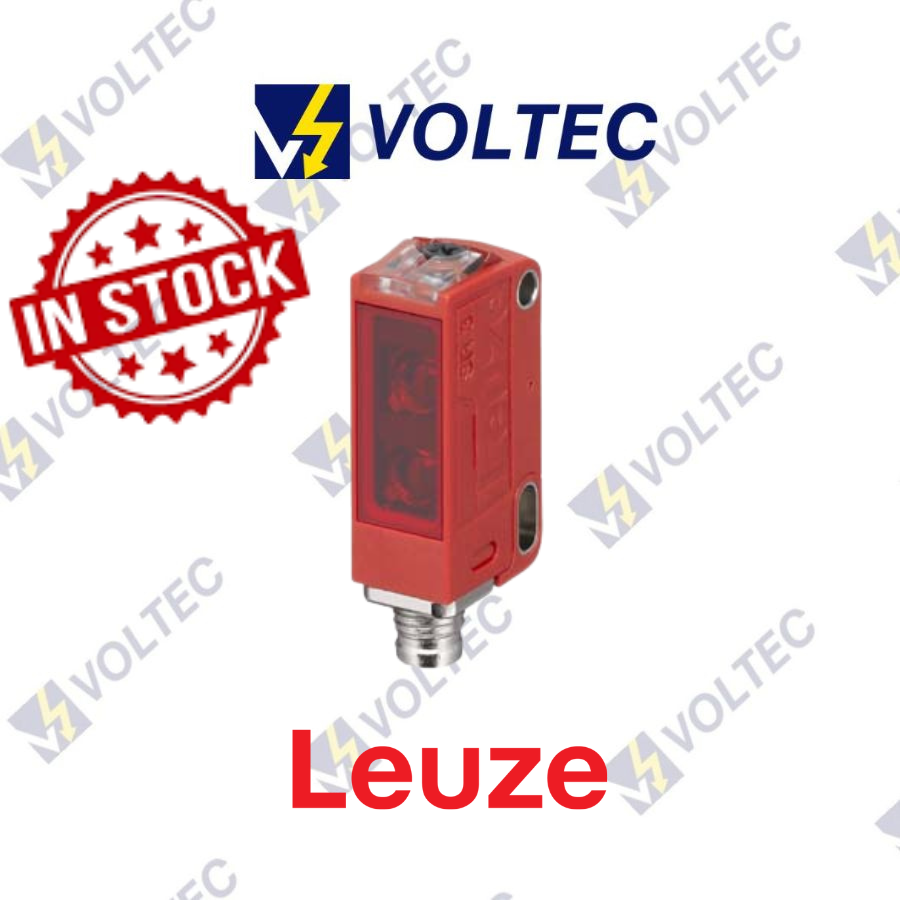

Leuze Diffuse Sensor With Background Suppression HT3C/6G-M8 | 50137052

  • RANGE: 0.005-0.45 m
  • OUTPUT: PNP/NPN(LIGHT SWITCHING/DARK SWITCHING)
  • SUPPLY VOLTAGE: 10-30VDC
  • M8 Connector
  • IP 67, IP 69K
Category:
Tag:

Description

Leuze Diffuse Sensor With Background Suppression HT3C/6G-M8 | 50137052

Leuze HT3C/6G-M8 | 50137052

Leuze Diffuse Sensors

Transmitter and receiver in one housing: Detection performed by detecting the light reflected by the object.

Technical Features:-

Basic Data:-

Series 3C
Operating principle Diffuse reflection principle with background suppression

Optical Data:-

Black-white error < 10% up to 220 mm
Operating range Guaranteed operating range
Operating range, white 90% 0.005 … 0.45 m
Operating range, gray 18% 0.01 … 0.34 m
Operating range, black 6% 0.015 … 0.22 m
Operating range limit 0.005 … 0.45 m
Operating range limit Typical operating range
Adjustment range 15 … 450 mm
Beam path Focused
Light source LED, Red
Wavelength 633 nm
Transmitted-signal shape Pulsed
LED group Exempt group (in acc. with EN 62471)
Type of light spot geometry square
Focus Fixed
Focal distance 200 mm

Electrical Data:-

Protective circuit Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC, Incl. residual ripple
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 15 mA

Outputs:-

Number of digital switching outputs 2 Piece(s)

Switching Outputs:-

Type Digital switching output

Switching Outputs 1:-

Switching element Transistor, Push-pull
Switching principle Light switching (PNP)/dark switching (NPN)

Switching Outputs 2:-

Switching element Transistor, Push-pull
Switching principle Dark switching (PNP)/light switching (NPN)

Time Behavior:-

Switching frequency 1,000 Hz
Response time 0.5 ms
Readiness delay 300 ms
Response jitter 166 µs

Connection:-

Number of connections 1 Piece(s)

Connection 1:-

Function Signal OUT
Voltage supply
Type of connection Connector
Thread size M8
Type Male
Material Metal
No. of pins 4 -pin

Mechanical Data:-

Dimension (W x H x L) 11.4 mm x 34.2 mm x 18.3 mm
Housing material Plastic
Plastic housing PC-ABS
Lens cover material Plastic / PMMA
Net weight 10 g
Housing color Red
Type of fastening Through-hole mounting
Via optional mounting device
Compatibility of materials ECOLAB

Operation & Display:-

Type of display LED
Number of LEDs 2 Piece(s)
Operational controls Multiturn potentiometer
Function of the operational control Range adjustment

Environmental Data:-

Ambient temperature, operation -40 … 60 °C
Ambient temperature, storage -40 … 70 °C

Data Sheet: PDF
