Description

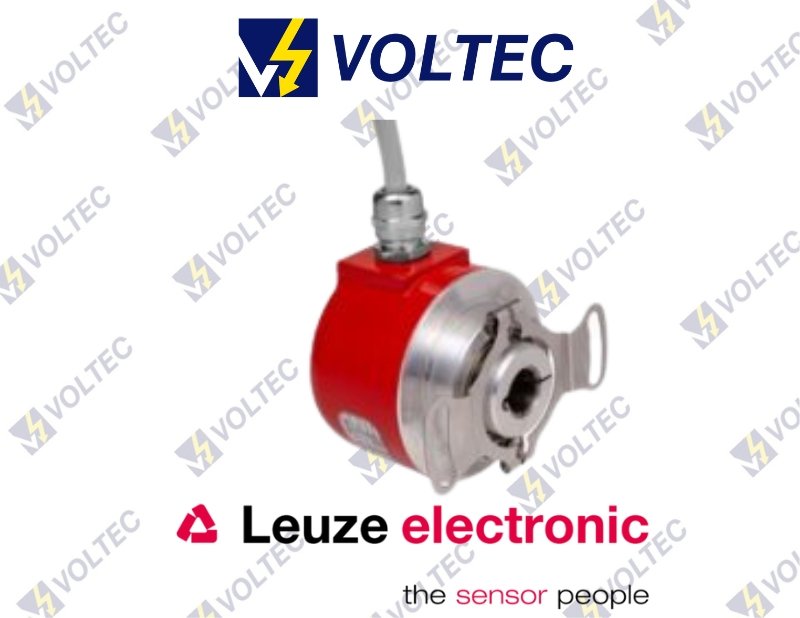

LEUZE Rotary Encoder EI 1058-T10S-1024T-020R

LEUZE Rotary Encoder

There are two main types of rotary encoders:

1. Incremental Rotary Encoder: This type of encoder provides incremental output pulses as the shaft rotates. It generates two square wave outputs, typically called “A” and “B” channels or signals. The encoder pulses indicate both the direction and the amount of rotation. By analyzing the sequence of pulses, you can determine the rotation direction (clockwise or counterclockwise) and count the number of pulses to calculate the total rotation angle.
2. Absolute Rotary Encoder: Absolute encoders provide a unique digital code for each shaft position. As the shaft rotates, the encoder sends a digital signal that corresponds directly to the current shaft position. This means that even if the power is turned off, the encoder retains the exact position information. Absolute encoders are useful when you need to know the precise position without relying on a reference point, making them suitable for applications where power interruptions may occur.

(Incremental Rotary Encoder)

Technical data:-

 Basic data:-

Series:-EI 1xxx.

Type:-Incremental rotary encoder.

Measurement data

Max. operating speed:- 6,000 r/min.

Resolution:-1,024 p/r.

LEUZE Rotary Encoder EI 1058-T10S-1024T-020R

Electrical data

Protective circuit:- Polarity reversal protection.

Short circuit protected.

Performance data

            Supply voltage UB:-5 … 28 V, DC.

           Open-circuit current:-0 … 150 mA.

Time behavior
Switching frequency:-300,000 Hz.

INTERFACE

TYPE:-TTL.

Connection

           Connection 1

Function:–                                                 Signal OUT,Voltage supply.

Type of connection:-                                      Cable.

                    Cable length:-                                                    2,000 mm.

                   Connector:-                                                          radial.

                    Sheathing material:-                                         PVC.

                   Cable color :-                                                         Gray.

                    Number of conductors :-                                 8 -wire.

                   Wire cross section:-                                          0.14 mm².

LEUZE Rotary Encoder EI 1058-T10S-1024T-020R

Mechanical data

        Housing material                                                  Metal.

        Metal housing                                                         Aluminum.

        Flange type                                                               Stator coupling.

         Shaft

              Dimension (Ø x L)                                           10 mm.

               Shaft load – axial                                              60 N.

Environmental data

               Ambient temperature, operation                 -40 … 70 °C.

Certifications

              Degree of protection:-                                          IP 65.

Standards applied:-                                      IEC 61000-6-2:2016, IEC 61000-6- 4:2016 + A1.

Electrical connection

Connection 1

Function                                                                                                                               Signal OUT,Voltage supply.

Type of connection                                                                                                          Cable.

Cable length                                                                                                                        2,000 mm.

Sheathing material                                                                                                           PVC.

Number of conductors                                                                                                   8 -wire.
