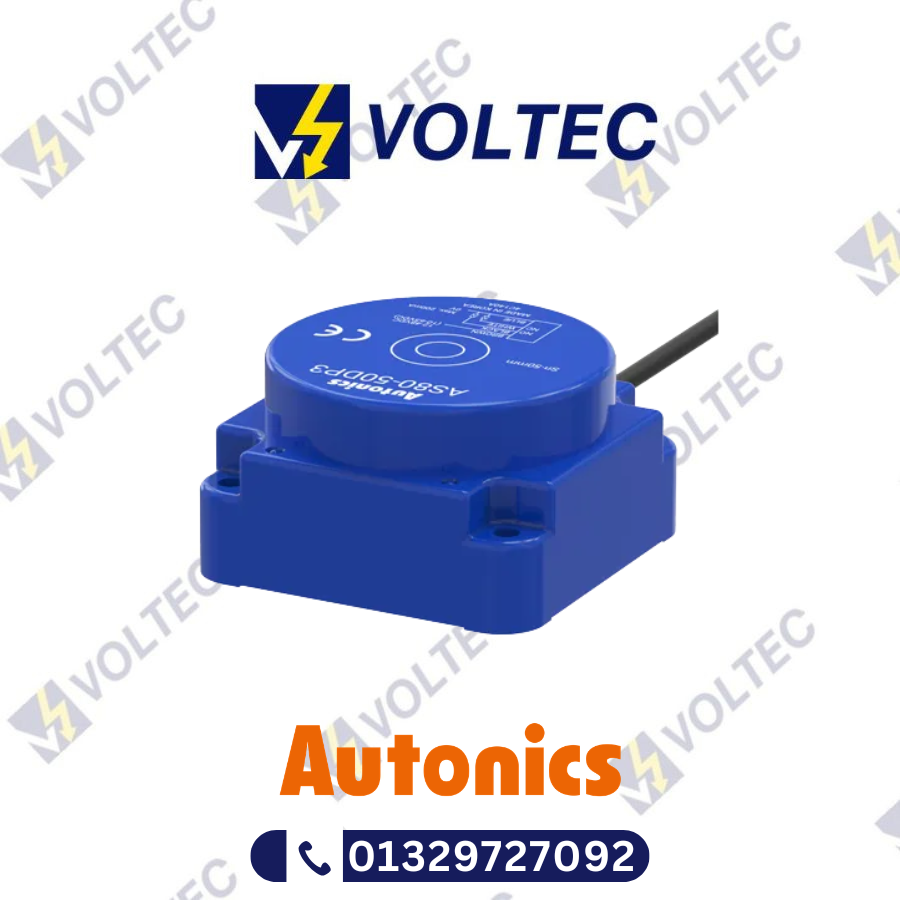

AUTONICS AS80-50DP3

AUTONICS Inductive Proximity Sensors | AS80-50DP3

  • Sensing range (max.): 50 mm
  • Switching frequency: 30 Hz
  • Switching output: PNP
  • Output function: NO+NC



For Price Call: 01329727092
Email: sales@voltecbd.com
Category:
Tags:

Description

AUTONICS Inductive Proximity Sensors | AS80-50DP3

AUTONICS Inductive Proximity Sensors

AUTONICS Inductive Proximity Sensors Supplier in Bangladesh

AS

Rectangular Inductive Long-Distance Proximity Sensors

The AS series rectangular inductive proximity sensors feature long sensing distance of 50 mm and excellent noise immunity. The sensors are capable of simultaneous Normally Open + Normally Closed output, offering convenience and flexibility for users.

AS AT A GLANCE

Main Features
  • Long sensing distance of 50mm
  • Power supply : 12-48VDC (operating voltage : 10-65VDC)
  • Simultaneous output (Normally Open + Normally Closed)
  • Power indicator (greed LED) and operation indicator (red LED)
  • Protection structure: IP67

Technical details-

Wire type and power DC 4-wire type
12-48VDC
Sensing side size Frame size 80mm
Sensing distance 50mm
Standard sensing target 150×150×1mm(iron)
Response frequency 30Hz
Current specification Current consumption: Max. 20mA
Control output PNP Normally Open+Normally Closed
Sensing type Upper sensing type
Protection structure IP67(IEC standard)
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 15% of sensing distance
Weight Approx. 470g

※The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.

Datasheet: PDF
