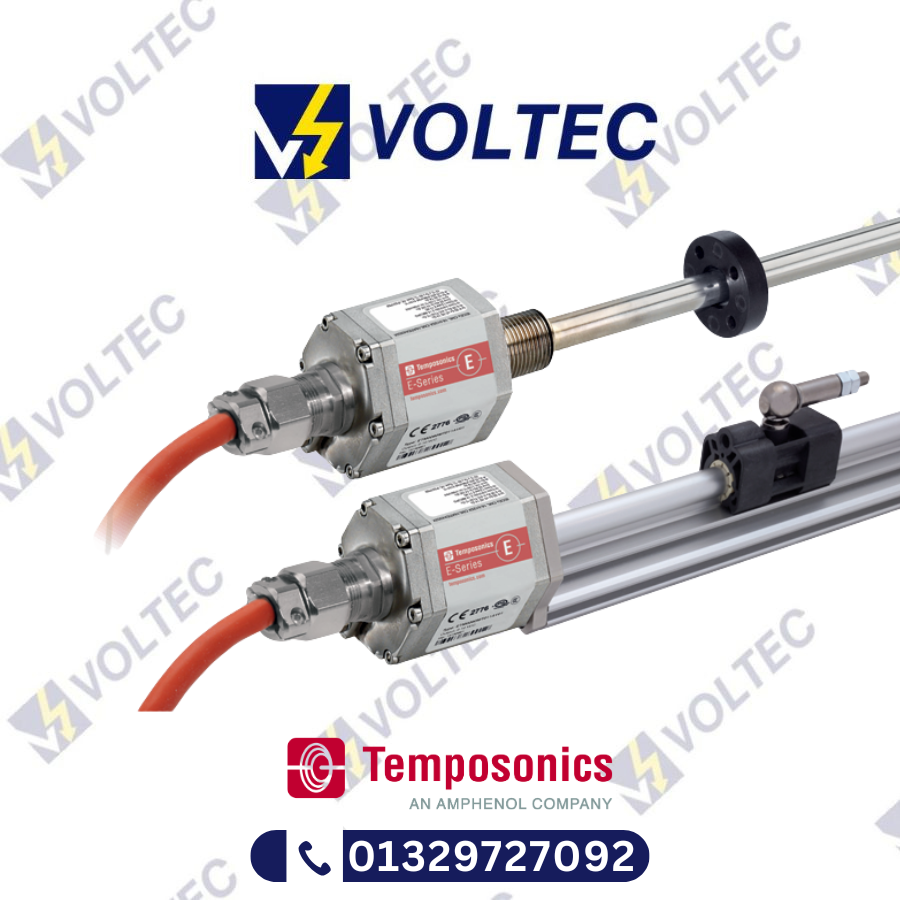

Temposonics ETM0300MT101AR3 E-Series ET Analog Magnetostrictive Linear Position Sensor
- Available in stainless steel 1.4404 (AISI 316L)
- Operating temperature up to +105 °C (+221 °F)
- ATEX / IECEx / CEC / NEC / CCC certified
- Programmable set points
- Outputs: Analog, SSI, Start/Stop
- Available as
- rod version for cylinder integrated position measurement
- profile version for position measurement of a motion axis
Description
Temposonics ETM0300MT101AR3 E-Series ET Analog Magnetostrictive Linear Position Sensor
Temposonics ETM0300MT101AR3 Linear Position Sensor
Application
Position sensors are used for measurement and conversion of the length (position) variable in the fields of automated systems and mechanical engineering.
Principle of operation and system construction
The absolute, linear position sensors provided by Temposonics rely on the company’s proprietary Temposonics® magnetostrictive technology, which can determine position with a high level of precision and robustness. Each position sensor consists of a ferromagnetic waveguide, a position magnet, a strain pulse converter and supporting electronics. The magnet, connected to the object in motion in the application, generates a magnetic field at its location on the waveguide. A short current pulse is applied to the waveguide. This creates a momentary radial magnetic field and torsional strain on the waveguide. The momentary interaction of the magnetic fields releases a torsional strain pulse that propagates the length of the waveguide. When the ultrasonic wave reaches the end of the waveguide it is converted into an electrical signal. Since the speed of the ultrasonic wave in the waveguide is precisely known, the time required to receive the return signal can be converted into a linear position measurement with both high accuracy and repeatability.
Technical data of Temposonics ET
| Output | |
| Voltage | 0…10 VDC and/or 10…0 VDC (minimum load controller: > 5 kΩ) |
| Current | 4(0)…20 mA and/or 20…4(0) mA (minimum/maximum load: 0/500 Ω) |
| Measured value | Position |
| Measurement parameters | |
| Resolution | 16 bit (minimum 1 μm depending on stroke length) |
| Cycle time |
Stroke length: ≤ 1200 mm / ≤ 2400 mm / ≤ 3000 mm
Cycle time: 0.5 ms / 1.0 ms / 2.0 ms |
| Linearity | ≤ ±0.02 % F.S. (minimum ±60 μm) |
| Repeatability | ≤ ±0.005 % F.S. (minimum ±20 μm) typical |
| Operating conditions | |
| Operating temperature | −40…+85 °C (−40…+185 °F); option: –40…+75 °C (–40…+167 °C) |
| Humidity | 90 % relative humidity, no condensation |
| Ingress protection |
With FEP cable (part no. 530 112): IP66
With silicone cable (part no. 530 113): IP68 (2 bar (29 psi) @ 30 min) |
| Shock test | 100 g (single shock), IEC standard 60068-2-27 |
| Vibration test |
Rod: 20 g/10…2000 Hz, IEC standard 60068-2-6
Profile: 15 g/10…2000 Hz, IEC standard 60068-2-6 |
| EMC test |
Electromagnetic emission: EN 61000-6-4; Immunity: EN 61000-6-2
Fulfills EMC directives 2014/30/EU, UKSI 2016 No. 1091, TR CU 020/2011 |
| Operating pressure | Up to 350 bar (5076 psi) — rod version only |
| Magnet movement velocity | Any |
| Design/Material | |
| Sensor electronics housing/flange | Stainless steel 1.4305 (AISI 303); option: Stainless steel 1.4404 (AISI 316L) |
| Sensor rod | Stainless steel 1.4306 (AISI 304L); option: Stainless steel 1.4404 (AISI 316L) |
| Sensor profile | Aluminum |
| RoHS compliance | Compliant with EU 2011/65/EU, 2015/863, and UKSI 2012 No. 3032 |
| Stroke length | 50…3000 mm (2…118 in.) |
| Mechanical mounting | |
| Mounting position | Any |
| Mounting instruction | Please consult the technical drawings on page 8 and on page 10 |
| Electrical connection | |
| Connection type | Cable outlet |
| Operating voltage | +24 VDC (−15/+20 %) |
| Ripple | ≤ 0.28 Vpp |
| Current consumption | 100 mA typical, dependent on stroke length |
| Dielectric strength | 700 VDC (DC ground to machine ground) |
| Polarity protection | Up to −30 VDC |
| Overvoltage protection | Up to 36 VDC |
Data Sheet: PDF
