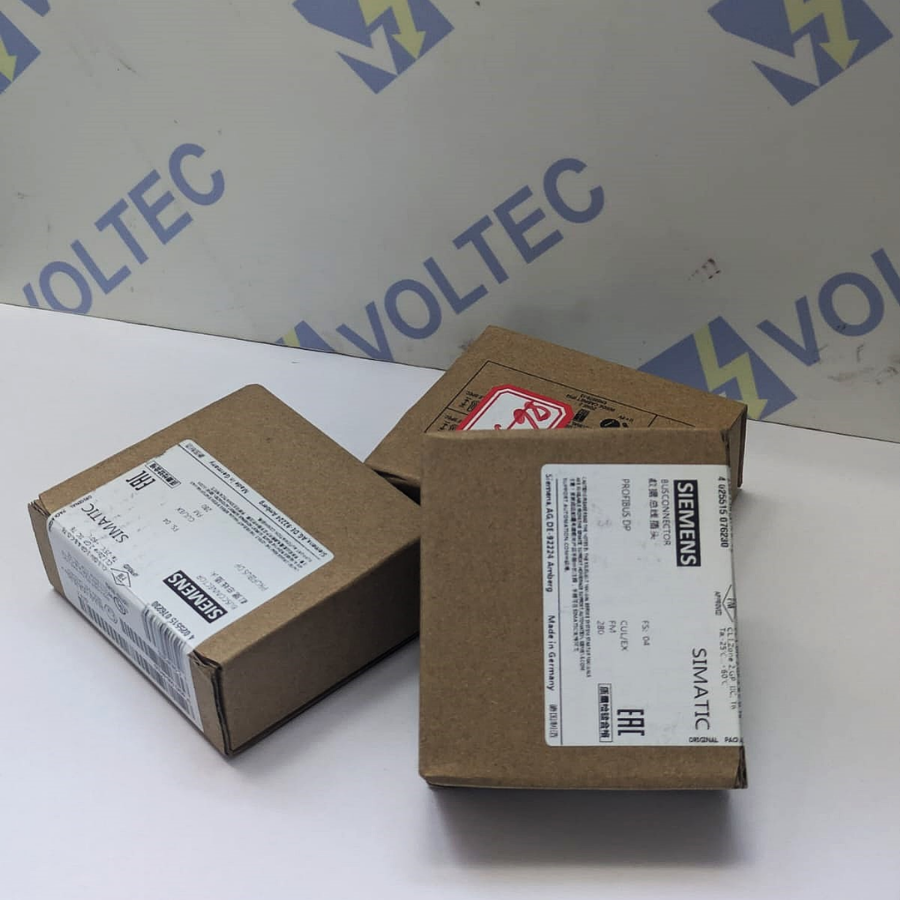

SIEMENS Profibus Connector | 6GK1500-0FC10
- Transfer rate / with PROFIBUS: 9.6 kbit/s … 12 Mbit/s
- Net weight: 40 g
- Ambient temperature (during operation): -40 … +70 °C
For Price Call: 01329727092
Email: sales@voltecbd.com
Description
SIEMENS Profibus Connector | 6GK1500-0FC10
SIEMENS Profibus Connector
SIEMENS Profibus Connector Supplier in Bangladesh
Profibus Connector
PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure.
Technical Features:-
| product type designation | PROFIBUS FC bus connector RS 485 | |
| product description | Bus connector with axial cable outlet (180°) | |
| product brand name | SIMATIC NET | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1500-0FC10 | |
| suitability for use | For connecting PROFIBUS nodes to the PROFIBUS bus cable | |
| transfer rate | ||
| transfer rate / with PROFIBUS | 9.6 kbit/s … 12 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| ● for PROFIBUS cables | 2 | |
| ● for network components or terminal equipment | 1 | |
| type of electrical connection | ||
| ● for PROFIBUS cables | Integrated insulation displacement terminals for 2-core PB FC installation cables | |
| ● for network components or terminal equipment | Sub-D connector (9-pin) | |
| type of electrical connection / FastConnect | Yes | |
| mechanical data | ||
| design of terminating resistor | Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated. | |
| material / of the enclosure | plastic | |
| locking mechanism design | Screwed joint | |
| design, dimensions and weights | ||
| type of cable outlet | 180° cable outlet | |
| width | 16 mm | |
| height | 62 mm | |
| depth | 34.5 mm | |
| net weight | 40 g | |
| ambient conditions | ||
| ambient temperature | ||
| ● during operation | -40 … +70 °C | |
| ● during storage | -25 … +80 °C | |
| ● during transport | -25 … +80 °C | |
| relative humidity | ||
| ● at 25 °C / without condensation / during operation / maximum | 75 % | |
| protection class IP | IP20 | |
| product features, product functions, product components / general | ||
| product feature | ||
| ● silicon-free | Yes | |
| product component | ||
| ● PG connection socket | No | |
| ● strain relief | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| ● RoHS conformity | Yes | |
| ● UL approval | Yes | |
| ● cULus approval | Yes | |
| ● railway application in accordance with EN 50155 | No | |
| standards, specifications, approvals / Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| ● total | 0.73 kg | |
| ● during manufacturing | 0.44 kg | |
| ● during operation | 0.24 kg | |
| ● after end of life | 0.05 kg | |
Datasheet: PDF
