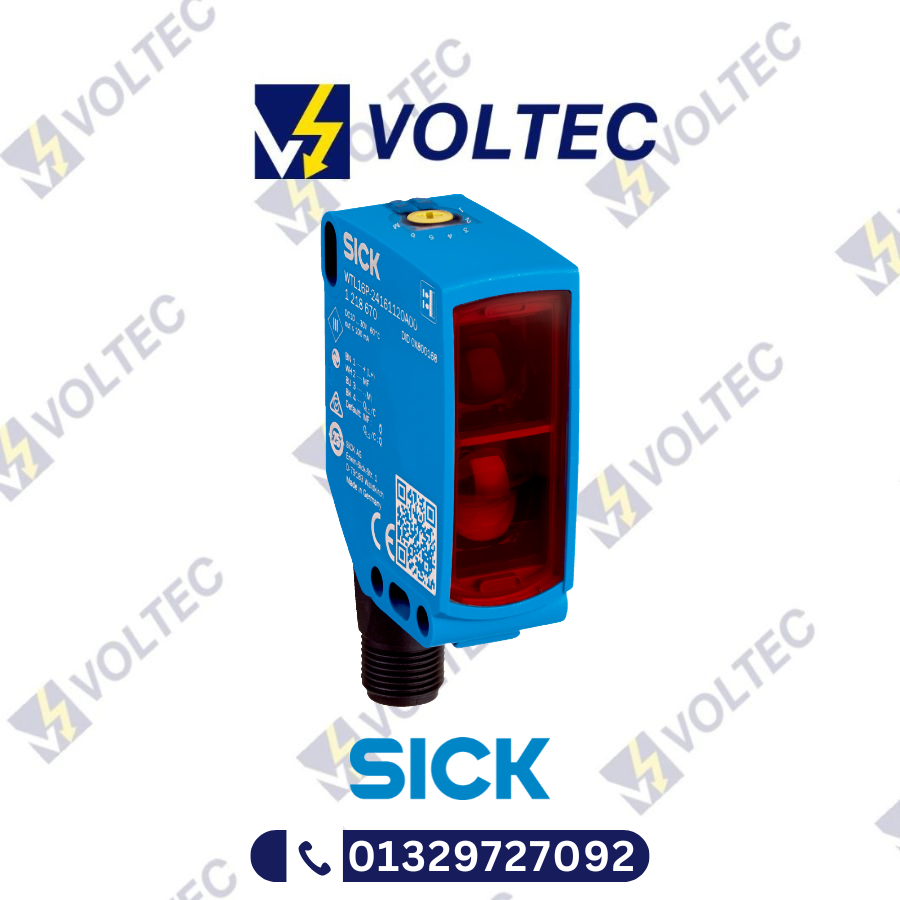

SICK WTM16F-24161120A00

SICK Photoelectric Sensors WTM16F-24161120A00 | Part no: 1157440

  • Functional principle: Photoelectric proximity sensor
  • Sensing range (max.): 2,000 mm
  • Connection type: Male connector M12, 4-pin
  • Output Type: Push-pull: PNP/NPN
  • Switching frequency: 1000 Hz
  • Switching mode: Light/dark switching



For Price Call: 01329727092
Email: sales@voltecbd.com
Category:
Tags:

Description

SICK Photoelectric Sensors WTM16F-24161120A00 | Part no: 1157440

SICK Photoelectric Sensors

SICK Photoelectric Sensors Supplier in Bangladesh

W16

The highflier in object detection

Depending on the variant, the W16 is equipped with new technologies such as TwinEye, LineSpot and ClearSens for reliable object detection. It can be quickly and conveniently adjusted via the BluePilot operating and display concept. Every W16 can be configured for the specific application via IO-Link and also offers diagnostic functions. Well-visible red PinPoint LEDs and infrared LEDs serve as the light source. The W16 sensors deliver reliable detection thereby reducing unplanned machine downtimes. Ready-to-install variants with metal housings are available for explosion-hazardous areas that meet the requirements of device categories 3D and 3G according to ATEX.



W16 AT A GLANCE

Benefits
  • Fault-free system operation thanks to rugged and reliable object detection with Optical Experts
  • The all-in-one photoelectric proximity sensor, WTM16F, for various applications reduces storage and handling effort, saves costs and simplifies processes
  • Solution for challenging detection tasks thanks to different light sources
  • Intuitive and quick commissioning, alignment and adjustment
  • Protection from disruptive environmental influences
Features
  • TwinEye, LineSpot, ClearSens, Spot Size Recognition
  • Two independent switching points, fast distance value output, DustAlert
  • Powerful, highly visible LEDs: PinPoint-Pro, PinPoint; infrared
  • Optical alignment aid, Teach-Turn adjustment, IO-Link
  • –40 °C … +60 °C, sensor variants according to category 3D and 3G

Technical details-

Features

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression, Foreground suppression, MultiMode, distance value
MultiMode 1 Background suppression (factory setting)

2 Foreground suppression

3 Two Value Teach-in

4 Two independent switching points

5 Window Mode

6 ApplicationSelect

M manual / measurement
Sensing range
Sensing range min. 10 mm (mode 1, 3, 4, 5)
0 mm (mode 2)
10 mm (Mode 1, 3, 4, 5 combined with 6)
0 mm (Mode 2 and 6 combined)
Sensing range max. 1,200 mm (mode 1, 3, 4, 5)
750 mm (mode 2)
2,000 mm (Mode 1, 3, 4, 5 combined with 6)
1,200 mm (Mode 2 and 6 combined)
Adjustable switching threshold for background suppression 100 mm … 1,200 mm (mode 1, 3, 4, 5)
100 mm … 2,000 mm (Mode 1, 3, 4, 5 combined with 6)
Adjustable switching threshold for foreground suppression 100 mm … 750 mm (mode 2)
100 mm … 1,200 mm (Mode 2 and 6 combined)
Reference object Object with 90% remission factor (complies with standard white according to DIN 5033)
Minimum distance between set sensing range and background (black 6% / white 90%) 5 mm, at a distance of 400 mm (mode 1, 3, 4, 5)
2 mm, at a distance of 400 mm (Mode 1, 3, 4, 5 combined with 6)
Minimum object height at set sensing range in front of black background (6% remission factor) 5 mm, at a distance of 400 mm (mode 2)
2 mm, at a distance of 400 mm (Mode 2 and 6 combined)
Recommended sensing range for the best performance 100 mm … 500 mm (Mode 1, 2, 3, 4, 5; Mode 1, 2, 3, 4, 5 combined with 6)
Distance value
Measuring range 100 mm … 1,200 mm
Repeatability 0,2 mm … 6 mm 1) 2) 3)
Accuracy 3 mm … 102 mm 1) 4)
Distance value output Via IO-Link
Resolution 0.1 mm
Update rate of the distance value 8 ms
Emitted beam
Light source PinPoint Pro LED
Type of light Visible red light
Shape of light spot Rectangular
Light spot size (distance) 10 mm x 8 mm (500 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle) < +/- 1.0° (at TU = +23 °C)
Focus position 500 mm
Key LED figures
Normative reference EN 62471:2008-09 | IEC 62471:2006, modified
LED risk group marking Free group
Wave length 635 nm
Average service life 100,000 h at Ta = +25 °C
Smallest detectable object (MDO) typ.
0.3 mm, at a distance of 300 mm, mode 1, 3, 4, 5
0.3 mm, at a distance of 300 mm, Mode 1, 3, 4, 5 combined with 6
Object with 90% remission factor (corresponds to standard white according to DIN 5033), without background
Adjustment
Teach-Turn adjustment BluePilot
For adjusting the sensing range with mode selection
IO-Link For configuring the sensor parameters and Smart Task functions
Display
LED blue BluePilot: Display of mode, display of output states QL1 (LED 3 permanently on) and QL2 (LED 5 permanently on)
LED green Operating indicator
Static on: power on
Flashing: IO-Link mode
LED yellow Status of received light beam
Static on: object present
Static off: object not present
Special features MultiMode

1) 90% remission factor.

2) Equivalent to 3 σ.

3) See repeatability characteristic lines.

4) See accuracy curve.

Electronics

Supply voltage UB 10 V DC … 30 V DC 1)
Ripple ≤ 5 V
Usage category DC-12 (According to EN 60947-5-2)

DC-13 (According to EN 60947-5-2)
Current consumption ≤ 30 mA, without load. At UB = 24 V
Protection class III
Digital output
Number 2 (Complementary)
Type Push-pull: PNP/NPN
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. UB-2.5 V / 0 V
Signal voltage NPN HIGH/LOW Approx. UB / < 2.5 V
Output current Imax. ≤ 100 mA
Circuit protection outputs Reverse polarity protected
Overcurrent protected
Short-circuit protected
Response time ≤ 500 µs (mode 1, 2, 3) 2)
≤ 1,000 µs (mode 4, 5) 2)
≤ 15 ms (Mode 1, 2, 3 combined with 6) 2)
≤ 30 ms (Mode 4, 5 combined with 6) 2)
Repeatability (response time) 150 µs (mode 1, 2, 3) 2)
350 µs (mode 4, 5) 2)
5 ms (Mode 1, 2, 3 combined with 6) 2)
10 ms (Mode 4, 5 combined with 6) 2)
Switching frequency 1,000 Hz (mode 1, 2, 3) 3)
500 Hz (mode 4, 5) 3)
30 Hz (Mode 1, 2, 3 combined with 6) 3)
15 Hz (Mode 4, 5 combined with 6) 3)
Pin/Wire assignment
Function of pin 4/black (BK) Digital output, light switching, object present → output QL1 HIGH (Mode 1, 3, 4, 5, 6) 4)
Digital output, dark switching, object present → output ǬL1 HIGH (Mode 2) 4)
IO-Link communication C
Function of pin 4/black (BK) – detail The pin 4 function of the sensor can be configured
Additional possible settings via IO-Link
Function of pin 2/white (WH) Digital output, dark switching, object present → output ǬL1 LOW (Mode 1, 3, 5, 6) 4)
Digital output, light switching, object present → output QL1 LOW (Mode 2) 4)
Digital output, light switching, object present → output QL2 HIGH (Mode 4) 4)
Function of pin 2/white (WH) – detail The pin 2 function of the sensor can be configured
Additional possible settings via IO-Link

1) Limit values.

2) Signal transit time with resistive load in switching mode.

3) With light/dark ratio 1:1.

4) This switching output must not be connected to another output.

Datasheet: PDF
