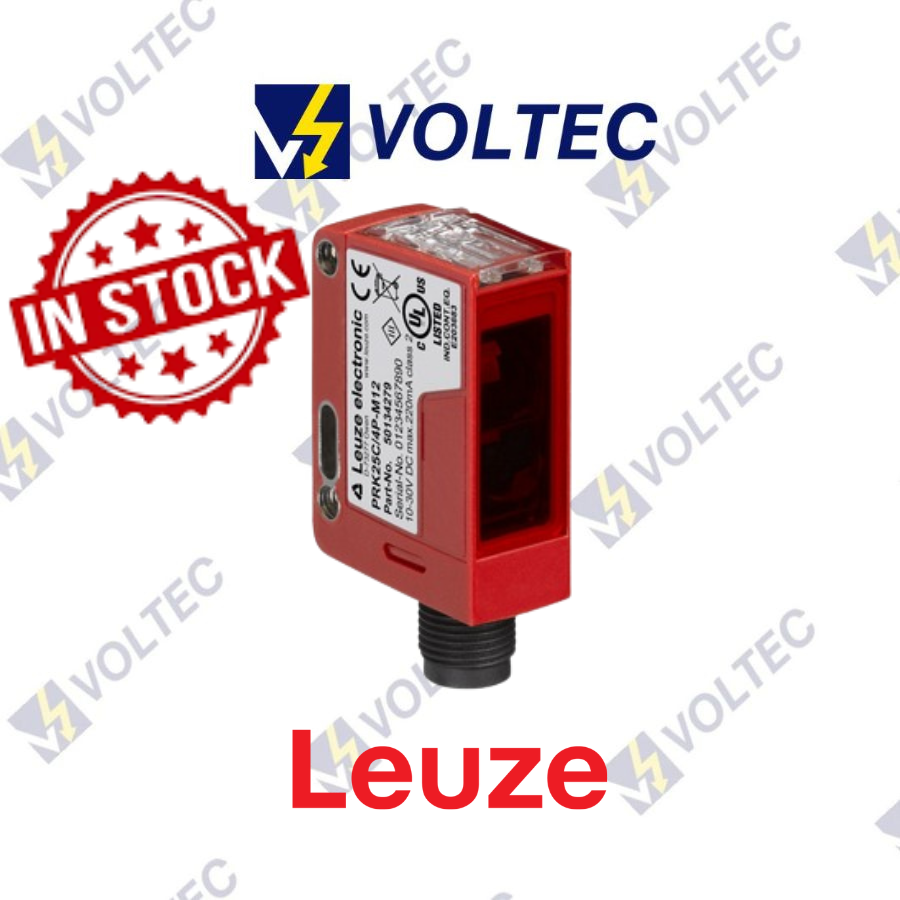

Leuze 50139688

Leuze Throughbeam Photoelectric Sensor Transmitter LS25C/XX-M12, 50139688

  • Device type: Transmitter
  • Operating range: 0… 25 m
  • Thread size: M12
  • Type: Male
  • Material: PUR
  • No. of pins: 4 -pin
Category:
Tags:

Description

Leuze Throughbeam Photoelectric Sensor Transmitter LS25C/XX-M12, 50139688

Leuze LS25C/XX-M12, 50139688

Throughbeam Photoelectric Sensor

Specifications:-

Basic Data:-

Series 25C
Operating principle Throughbeam principle
Device type Transmitter

Optical Data:-

Operating range 0 … 25 m (guaranteed operating range)
Operating range limit 0 … 30 m (typical operating range)
Light source LED, Red
Transmitted-signal shape Pulsed
LED group Exempt group (in acc. with EN 62471)

Electrical Data:-

Protective circuit Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC, Incl. residual ripple
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 20 mA

Time Behavior:-

Readiness delay 300 ms

Connection:-

Number of connections 1 Piece(s)

Connection 1:-

Function Voltage supply
Type of connection Connector
Thread size M12
Type Male
Material PUR
No. of pins 4 -pin
Encoding A-coded

Mechanical Data:-

Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 22 g
Housing color Red
Type of fastening Through-hole mounting with M4 thread
Via optional mounting device
Compatibility of materials ECOLAB

Environmental Data:-

Ambient temperature, operation -40 … 60 °C
Ambient temperature, storage -40 … 70 °C

Data Sheet: Pdf
