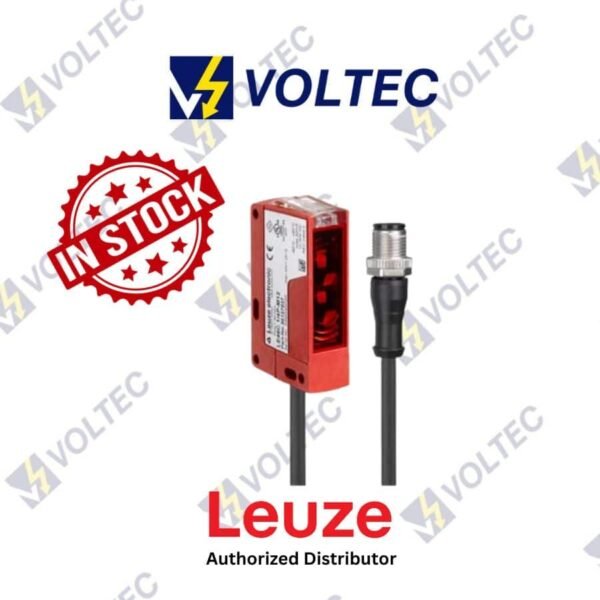

Leuze Diffuse Sensor HT46C.SL/4X-200-M12, 50131552
- RANGE: 120-1200MM
- OUTPUT: PNP-LIGHT SWITCHING
- SUPPLY VOLTAGE: 10-30VDC
- M12 CONNECTOR
- PLASTIC HOUSING
Description
Leuze Diffuse Sensor HT46C.SL/4X-200-M12, 50131552
Diffuse Sensor with Background Suppression
Specifications:-
Basic Data:-
| Series | 46C |
| Operating principle | Diffuse reflection principle with background suppression |
| Application | Object detection between the rollers of a roller conveyor |
Special Version:
| Special version | Small light spot (S) |
Optical Data:
| Black-white error | < 10% up to 800 mm |
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.01 … 1.2 m |
| Operating range, gray 18% | 0.015 … 1 m |
| Operating range, black 6% | 0.02 … 0.8 m |
| Operating range limit | Typical operating range |
| Operating range limit | 0.01 … 1.2 m |
| Adjustment range | 120 … 1,200 mm |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 630 nm |
| LED group | Exempt group (in acc. with EN 62471) |
| Type of light spot geometry | Rectangular |
| Focus | Fixed |
Electrical Data:-
| Protective circuit | Polarity reversal protection Short circuit protected Transient protection |
Performance Data:-
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 30 mA |
Outputs:-
| Number of digital switching outputs | 1 Piece(s) |
Switching Outputs 1:-
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
Time Behavior:-
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Readiness delay | 300 ms |
Connection:-
Connection 1:-
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
Mechanical Data:-
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Plastic housing | PC-PBT |
| Lens cover material | Plastic / PMMA |
| Net weight | 65 g |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Compatibility of materials | ECOLAB |
Operation & Display:-
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Function of the operational control | Range adjustment |
Environmental Data:-
| Ambient temperature, operation | -40 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
Data Sheet: Pdf
