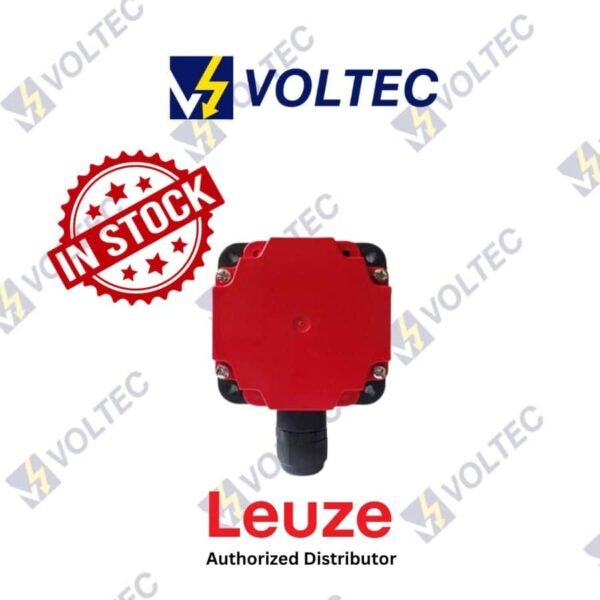

Leuze Inductive Proximity Sensor IS 180PP/22-50N-TB.4, 50133405

Leuze Inductive Proximity Sensor IS 180PP/22-50N-TB.4, 50133405

  • CUBIC DESIGN
  • RANGE: 50MM
  • OUTPUT: NPN-NO
  • NPN-NC
  • SUPPLY VOLTAGE: 10-30VDC
  • 4-PIN
  • PLASTIC HOUSING
  • NON EMBEDDED
Category:
Tags:

Description

Leuze Inductive Proximity Sensor IS 180PP/22-50N-TB.4, 50133405

Inductive Proximity Sensor

Specifications:-

Basic Data:-

Series 180
Typ. operating range limit Sn 50 mm
Operating range Sa 0 … 40.5 mm

Electrical Data:-

Protective circuit Overload protection
Polarity reversal protection
Short circuit protected

Performance Data:-

Supply voltage UB 10 … 30 V, DC
Residual ripple 10 %, From UB
Open-circuit current 0 … 10 mA
Temperature drift, max. (in % of Sr) 10 %
Repeatability, max. (in % of Sr) 1 %
Switching hysteresis 15 %

Outputs:-

Number of digital switching outputs 2 Piece(s)

Switching Outputs:-

Voltage type DC
Switching current, max. 200 mA
Residual current, max. 0.01 mA
Voltage drop ≤ 2 V

Switching Outputs 1:-

Switching element Transistor, NPN
Switching principle NO (normally open)

Time Behavior:-

Switching frequency 100 Hz

Connection:-

Number of connections 1 Piece(s)

Connection 1:-

Function Signal OUT
Voltage supply
Type of connection Terminal
No. of pins 4 -pin

Mechanical Data:-

Design Cubic
Dimension (W x H x L) 40 mm x 80 mm x 80 mm
Type of installation Non-embedded
Housing material Plastic
Plastic housing Polybutylene (PBT)
Sensing face material Plastic, Polybutylene (PBT)
Housing color Black
Red, RAL 3000
Type of fastening Through-hole mounting
Standard measuring plate 150 x 150 mm², Fe360

Operation & Display:-

Type of display LED
Number of LEDs 2 Piece(s)

Environmental Data:-

Ambient temperature, operation -25 … 70 °C
Ambient temperature, storage -25 … 70 °C

Data Sheet: Pdf

Model:-

IS 180PP/22-50N-TB.4 ; Part no.: 50133405

IS 180PP/44-50N-TB.4 ; Part no.: 50132770
