LEVEL RADAR SENSOR

Endress+Hauser Micropilot Radar Sensor FMR62B–80 GHz

Add to Wishlist
Add to Wishlist

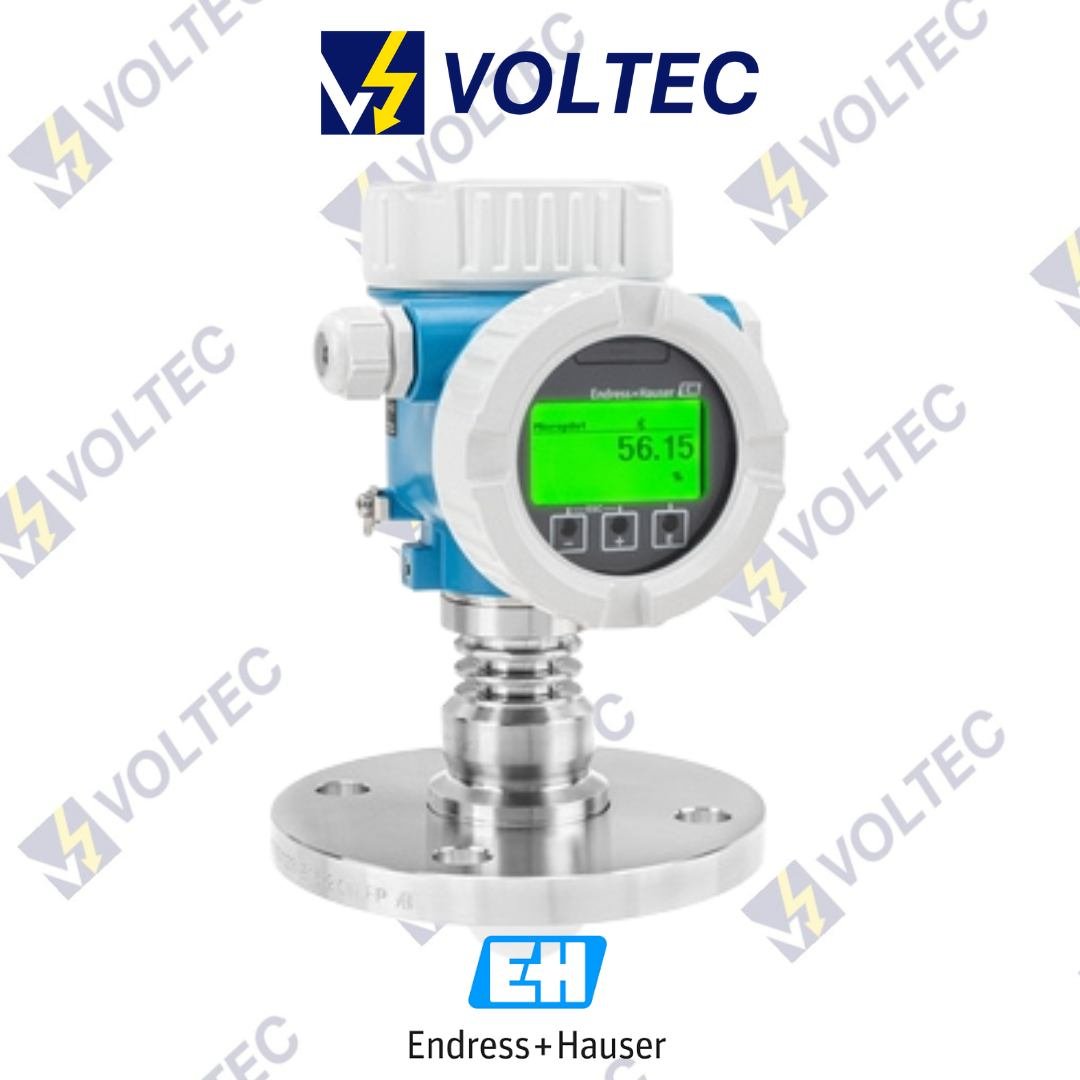

The Micropilot FMR62B provides high beam focusing for vessels with numerous internal fittings and is appropriate for free-space applications up to 80 meters.

Category:
Tags:

Description

Endress+Hauser Micropilot Radar Sensor FMR62B–80 GHz

LEVEL RADAR SENSOR

Field of application:-

The next series of radar sensors operating at 80 GHz includes the Micropilot FMR62B. Continuous non-contact level measurement is its main usage in difficult liquid applications. It is adept at handling process demands like high pressure, high temperatures, and medium changes. The risk of systematic mistakes is decreased by testing concepts for proof tests and SIL-locking. Heartbeat Technology provides monitoring and verification features to spot irregularities in order to boost productivity and safety.

The Micropilot FMR62B is suitable for free-space applications up to 80m and offers high beam focusing for vessels with many internal fittings.

  • Process connections: Flanges.

  • Temperature: –196 to +450 °C (-320 to +842°F).

  • Pressure: –1 bis +160 bar (-14.5 to 2320.6 psi).

  • Maximum measuring range: 80 m (262.5 ft).

  • Accuracy: ±1 mm (0.04 in).

  • W-band: 80 GHz.

  • International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate.

Endress+Hauser Micropilot Radar Sensor FMR62B–80 GHz

Advantages:-

♦ Enhanced productivity as a result of Heartbeat Technology’s process monitoring, verification, and diagnostics.

♦ Safety by design: Device development for SIL 2 and SIL 3 applications (such as homogeneous redundancy) in accordance with IEC 61508.

♦ Reduction of systematic mistakes by means of proof testing, verification, and guided SIL-locking.

♦ Simple handling for commissioning and verification thanks to wizards and easy operation.

♦ Simpler troubleshooting with suggested steps displayed on the screen.

Endress+Hauser Micropilot Radar Sensor FMR62B–80 GHz

Specifications:-

Measuring principle

 Level radar

Characteristic / Application

 Premium device for continuous non-contact
level measurements, where aggressive media
are used; For vessels with many internals

Specialties

 Heartbeat Technology;
SIL 2/3 according to IEC 61508;
Bluetooth® commissioning;
Operation and maintenance with SmartBlue App;
HistoROM;
RFID TAG for easy identification;
Very narrow beam angle

Supply / Communication

 2-wire (HART/ PROFIBUS PA)
PROFINET with Ethernet-APL
Bluetooth® wireless technology

Frequency

 W-Band (~80 GHz)

Accuracy

 +/-1 mm (0.04 in)

Ambient temperature

 -40 … +85 °C (-40 … +185 °F)

Process temperature

 -196 … +450 °C (-321 … +842 °F)

Process pressure/max. Overpressure limit

 Vacuum…160 bar (2320 psi)

Main wetted parts

 316L or PTFE (clad 316L flanges)

Process connection

 Flange:
DN50 … DN150
ASME 2″ … 8″

Max. Measurement distance

 80 m (262 ft)

Communication

 HART/ PROFIBUS PA
PROFINET with Ethernet-APL
Bluetooth® wireless
technology and app (optional)

Certificates / Approvals

 IEC Ex, ATEX, CSA C/US, EAC Ex, JPN Ex, KC Ex,
INMETRO Ex, NEPSI Ex, UK Ex

Safety approvals

 Overfill protection WHG;
SIL 2/ SIL 3

Design approvals

 Acceptance test certificate 3.1, EN10204;
NACE MR0175 / ISO 15156;
NACE MR0103 / ISO 17945;
EU Food Contact Material (EC) 1935/2004;
US Food Contact Material FDA CFR 21;
Declaration of Conformity ASME B31.3;
Conformity to cGMP;
AD2000;
PMI test;
CRN approval;
Helium leak test;
Liquid penetrant test AD2000-HP5-3(PT);
Liquid penetrant testing ISO23277-1 (PT);
Liquid penetrant testing ASME VIII-1 (PT);
Welding documentation (according to ISO or ASME)

Marine approval

 KR, ABS, LR, BV, RINA, DNV GL

Options

 Display,
Customized settings,
App ‘SmartBlue’ for commissioning and operation via Bluetooth
Gas-tight implementation;
Overvoltage protection;
PWIS free

Application limits

 Strong turbulences and foam,
long stilling wells (>12 m) and bypass -> FMR5x,FMP5x



MORE INFORMATION-PDF
