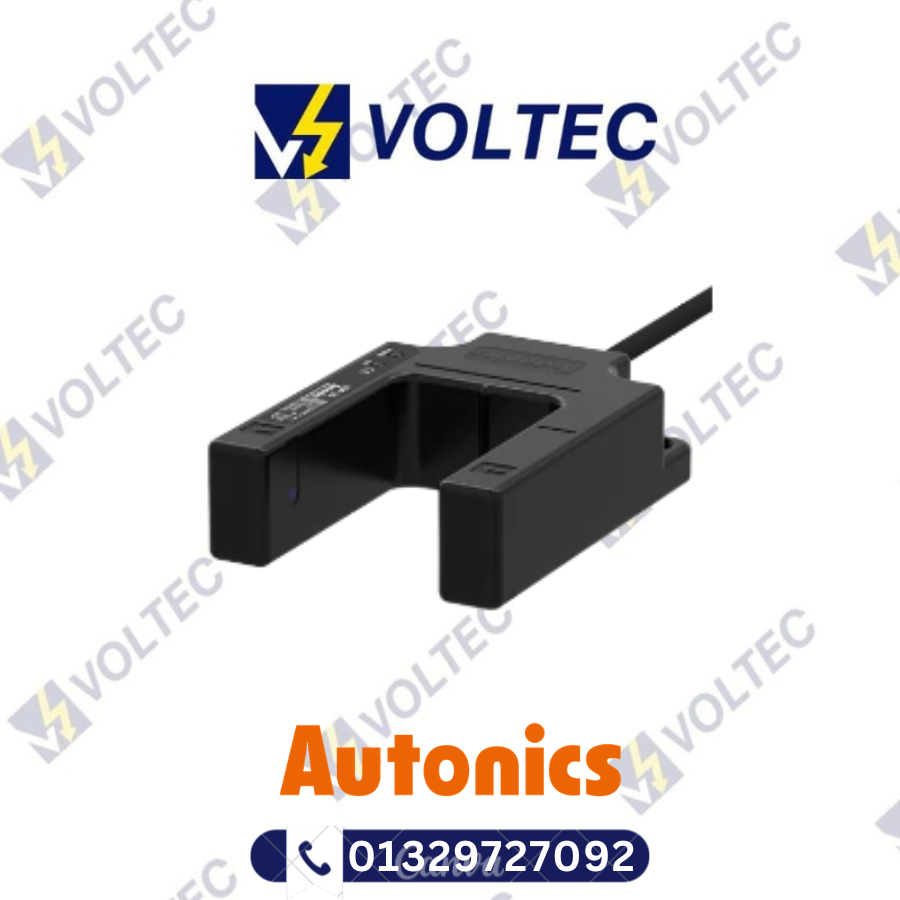

AUTONICS BUP-50S-P

AUTONICS Photoelectric Proximity Sensors | BUP-50S-P

  • Functional principle: Through-beam
  • Sensing range: 50 mm
  • Connection type: Cable type(Ø4, 2m)
  • Output Type: PNP open collector
  • Operation mode: Light ON/Dark ON(set by control wire)



For Price Call: 01329727092
Email: sales@voltecbd.com
Category:
Tags:

Description

AUTONICS Photoelectric Proximity Sensors | BUP-50S-P

AUTONICS Photoelectric Proximity Sensors

AUTONICS Photoelectric Proximity Sensors Supplier in Bangladesh

BUP

U-Shaped Photoelectric Sensors

The U-shaped photoelectric sensors BUP series are available in 30 mm, 50 mm sensing distance models and sensitivity adjustable models to expand the flexibility for various applications.



BUP AT A GLANCE

Main Features
  • Various sensing distance lineup : 30 mm, 50 mm models
  • High speed response time under 1 ms
  • Sensitivity adjustable model available
  • Switch between Light ON and Dark ON modes using control wire

Technical details-


Sensing type Through-beam type
Sensing Channel 1-channel
Sensing distance 50mm
Sensing target Opaquematerial of min. Ø1.5mm
Light source Infrared LED(940nm)
Response time Max. 1ms
Power voltage 12-24VDC  ±10%(ripple P-P: max. 10%)
Current consumption Max. 30mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by control wire)
Control output PNP open collector
Connection type Cable type(Ø4, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 70℃
Protection structure IP66
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Accessories Adjuster driver
Weight Approx. 140g

※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
※The weight includes packaging. The weight in parenthesis is for unit only.

Datasheet: PDF

More Photoelectric proximity sensors :

AUTONICS BUP-50-E, AUTONICS BUP-30-E, AUTONICS BUP-50S, AUTONICS BUP-30S, AUTONICS BUP-30S-P, AUTONICS BUP-50, AUTONICS BUP-50-P, AUTONICS BUP-30, AUTONICS BUP-30-P
