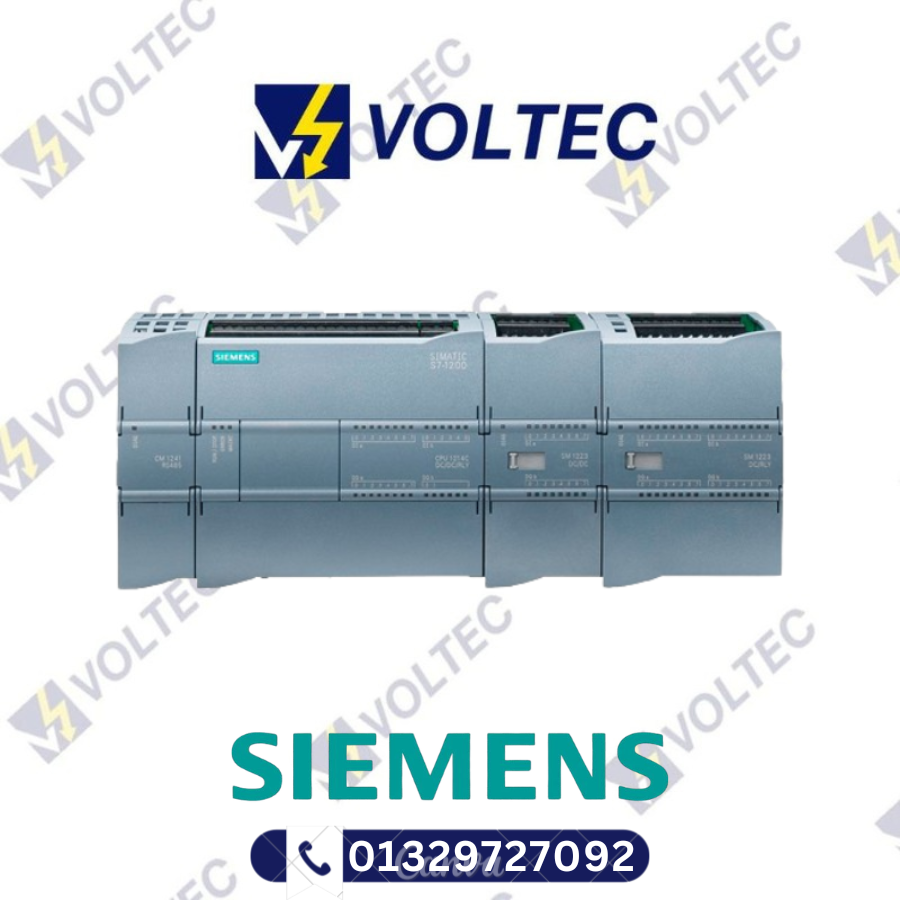

SIEMENS S7-1200

SIEMENS Basic Controllers | S7-1200

  • Line voltage: 115/230 VAC
  • Rated voltage: 24 VDC
  • Power supplies: PS 1207 stabilized power supplies



For Price Call: 01329727092
Email: sales@voltecbd.com
Category:
Tags:

Description

SIEMENS Basic Controllers | S7-1200

Siemens Basic Controllers

SIEMENS Basic Controllers supplier in Bangladesh

S7-1200 AT A GLANCE

SIMATIC S7-1200 Controllers are the intelligent choice for compact automation solutions with integrated IOs, communication functions and technology functions for automation tasks in the lower to middle performance range. They are available in standard and fail-safe versions.

The scalable SIMATIC S7-1200 Controllers have integrated inputs and outputs as well as communication options and allow modular expansion. Digital and analog input and output modules as well as different communications and special modules enable flexible adaptation to the relevant automation task.

Benefits

Efficient engineering

The seamless integration of SIMATIC Controllers into the common TIA Portal engineering framework permits the integrated storage of data, the smart library concept, and a uniform operating philosophy. This makes the use of universal functions particularly easy.

Variety of diagnostic options

An efficient error analysis and fast error localization with the new uniform display concept – plain text information on the error message in TIA Portal, on the HMI, and in the web server – shortens commissioning times and minimizes production downtimes. SIMATIC S7-1200 offers you a diagnostic functionality that is already integrated in the system, without the need for any further programming.

Innovative design

The SIMATIC S7-1200 Basic Controller can be perfectly adapted to the automation task at hand thanks to its comprehensive expansion options. The modular board concept permits an easy expansion of the controller without changing the physical size. Device replacement is simple, without rewiring through terminal strips.

Safety Integrated

Fail-safe automation is as easy to program as standard automation, and PROFIsafe devices are connected via PROFINET.

Technology Integrated

Simple Motion Control applications, fast counting and measuring tasks, as well as closed-loop control systems (PID) are integrated and can be implemented without additional expansion boards.

Security Integrated

Secured communication, know-how protection, copy protection and access protection prevent manipulation, opening and duplication of blocks by unauthorized persons, and thus protect your algorithm or process.

Technical details-

Degree of protection

IP20 acc. to IEC 529

Ambient temperature

  • Operation
    (95% humidity)

  • Horizontal installation

-20 … +60 °C
  • Vertical installation

-20 … +50 °C
  • Transportation and storage

-40 … +70 °C
  • With 95% humidity

25 … 55 °C

Insulation

  • 5/24 V DC circuits

500 V AC test voltage
  • 115/230 V AC circuits to ground

1500 V AC test voltage
  • 115/230 V AC circuits to 115/230 V AC circuits

1500 V AC test voltage
  • 230 V AC circuits to 5/24 V DC circuits

1500 V AC test voltage
  • 115 V AC circuits to 5/24 V DC circuits

1500 V AC test voltage

Electromagnetic compatibility

Requirements of the EMC directive
  • Noise immunity acc. to
    EN 50082-2

Test acc. to:
IEC 801-2, IEC 801-3, IEC 801-4, EN 50141, EN 50204, IEC 801-5, VDE 0160
  • Emitted interference acc. to EN 50081-1 and
    EN 50081-2

Test according to
EN 55011, Class A,
Group 1

Mechanical strength

  • Vibrations, test acc. to / tested with

IEC 68, Part 2-6:
10 … 57 Hz;
constant amplitude
0.3 mm;
58 … 150 Hz;
constant acceleration 1 g (mounted on DIN rail) or
2 g (mounted in switchboard);
mode of vibration:
frequency sweeps with a sweep rate of 1 octave/minute;
duration of vibration:
10 frequency sweeps per axis in each direction of the three mutually perpendicular axes
  • Shocks, test acc. to / tested with

IEC 68, Part 2-27/half-sine:
magnitude of shock 15 g (peak value), duration 11 ms, 6 shocks in each of the three mutually perpendicular axes



Datasheet: PDF
