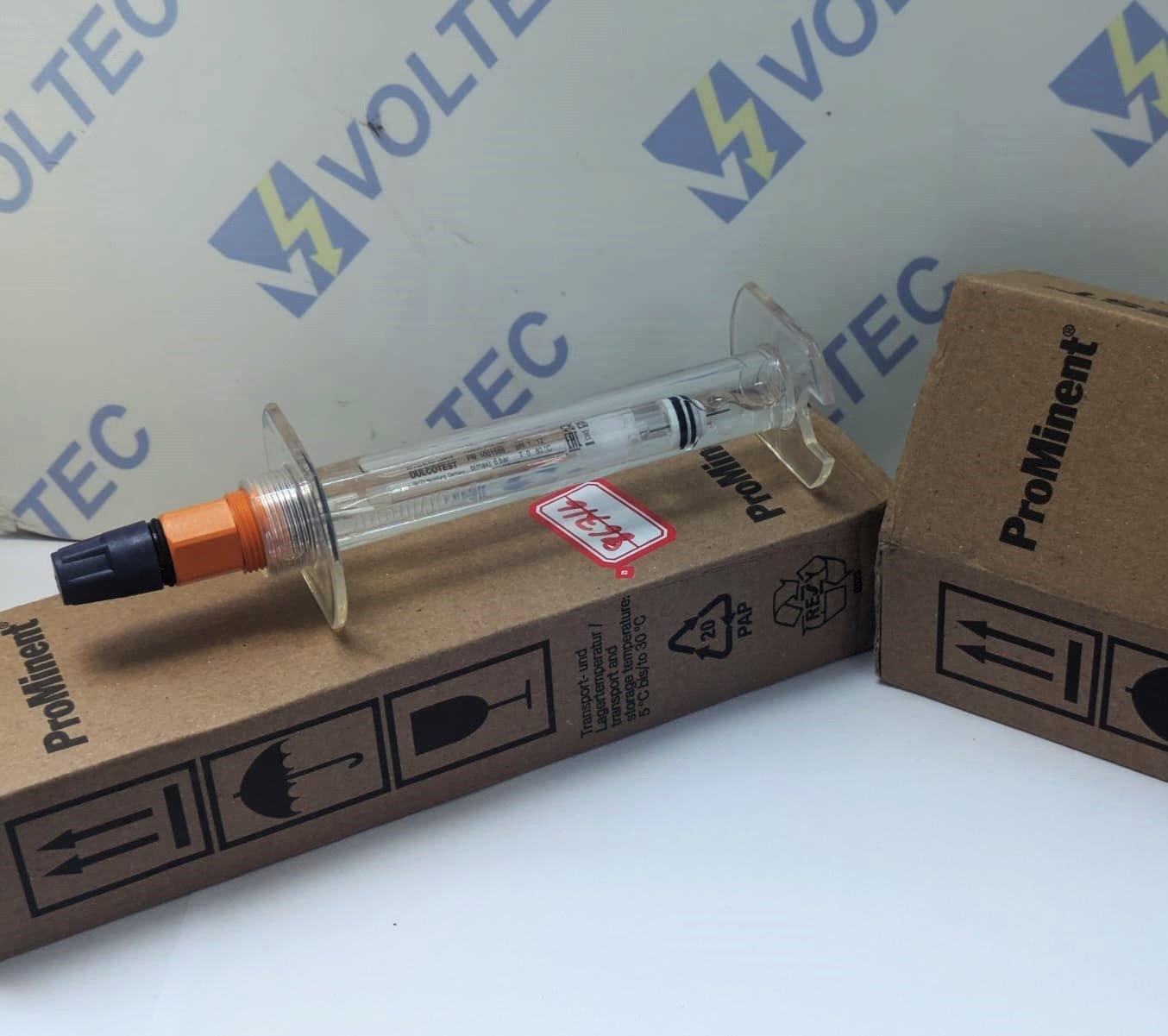

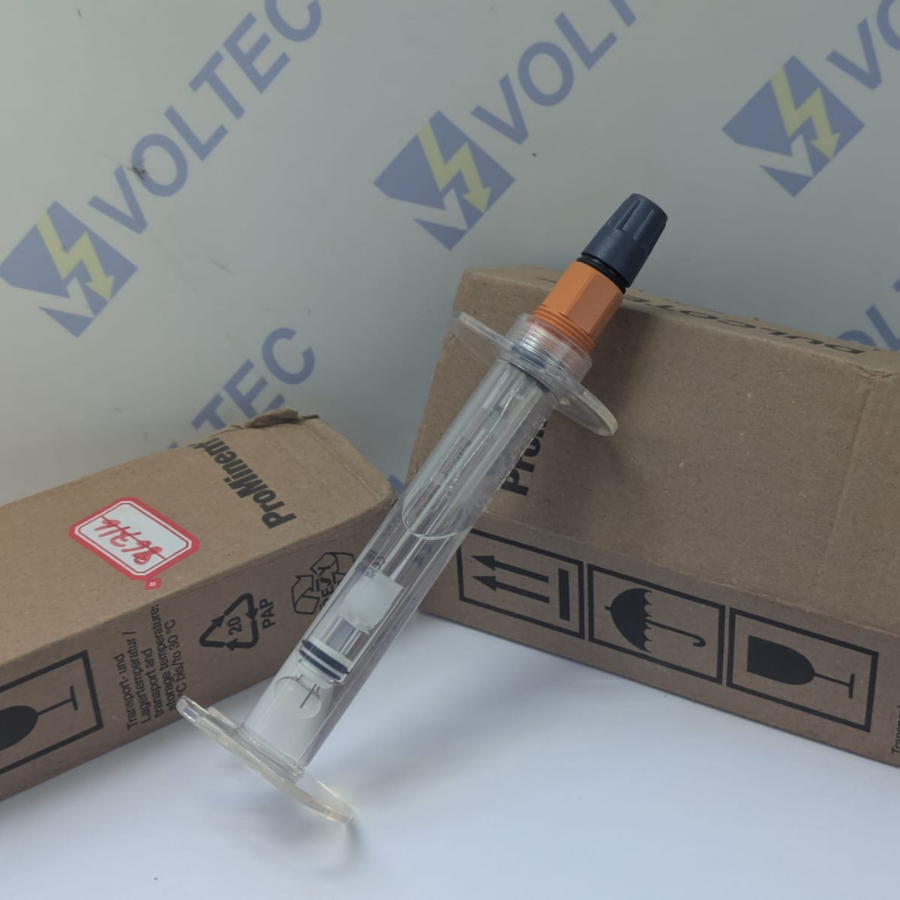

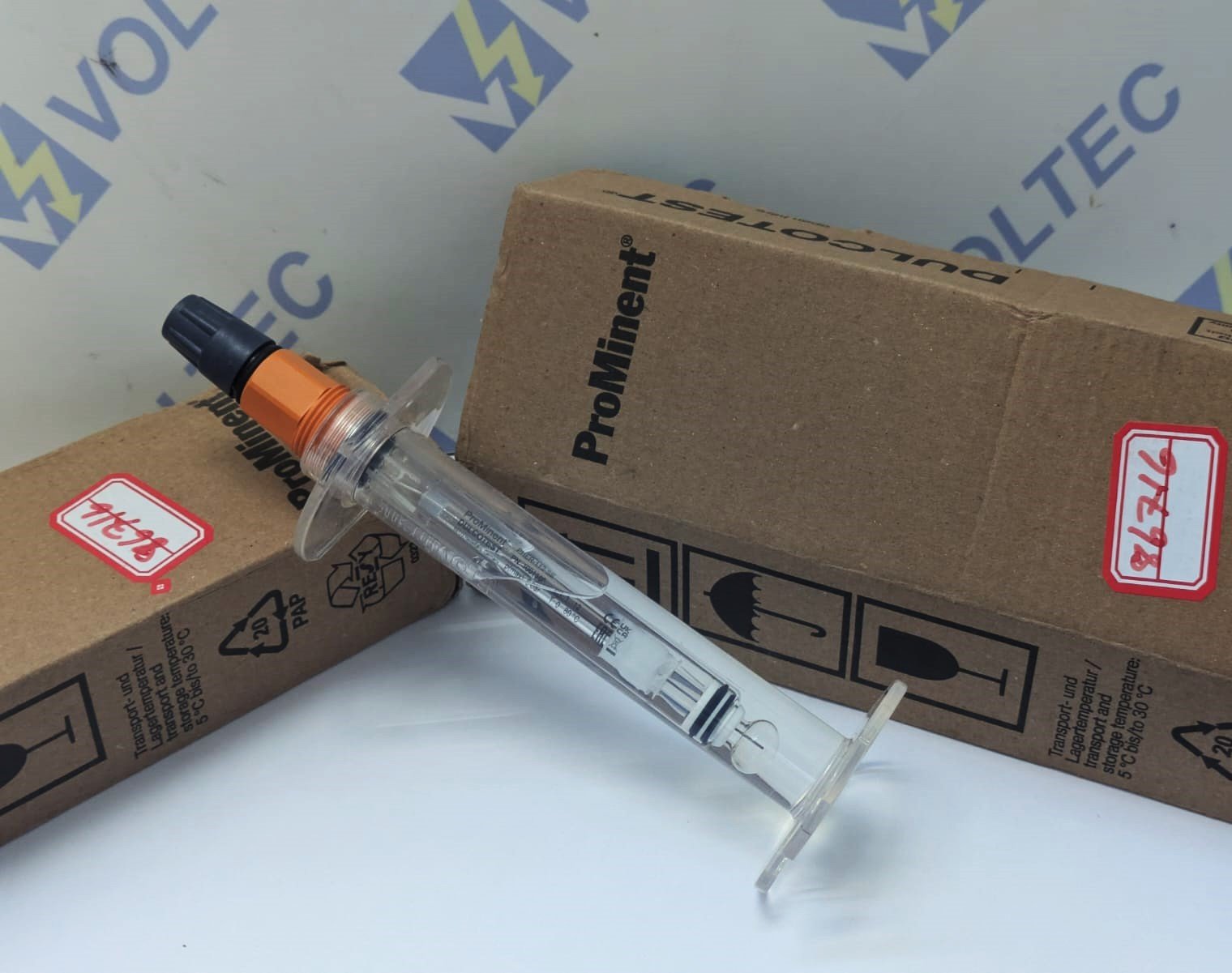

ProMinent pH Sensors | PHER 112 SE
- pH-range: 1 – 12
- Temperature: 0 – 80 °C
- Max. pressure: 6.0 bar
- Electrical Connection: SN6 plug-in head, rotatable with a ProMinent cable
For Price Call: 01329727092
Email: sales@voltecbd.com
Description
ProMinent pH Sensors | PHER 112 SE
ProMinent pH Sensors
ProMinent pH Sensors Supplier in Bangladesh
Reliable online measurement of pH values – with DULCOTEST sensors
The online measurement and adjustment of pH values must be as accurate, fast and reliable as possible and provide good availability of the measured values, be it for the monitoring, control or regulation of chemical processes. ProMinent product line of DULCOTEST pH sensors provides a wide range of pH sensors for different measuring tasks. ProMinent pH sensors are manufactured to very strict quality controls (e.g. in accordance with RoHS guidelines). Routine steps are automated but critical steps are carried out manually under expert supervision. In this way we achieve the best reproducible quality and cost reduction.
ProMinent pH Sensors AT A GLANCE
- Electrochemical combination electrode: pH and reference electrode integrated
- The large dirt-repellent Teflon® diaphragm prevents the reference system from becoming blocked up
- Long service life when solids are present
- High-viscosity electrolyte combined with a salt reservoir prevents the electrolyte from ‘bleeding’
- Long service life without drifts when there is clear water with low conductivity
- Twist protection for the sensor cable connected. This means that the cables can remain connected during installation and dismantling of the sensor, avoiding troublesome moisture on the connector contacts
- Lead-free glass for advanced and environmentally-friendly production, use and disposal (RoHS-compliant)
Technical details-
| pH-range | 1…12 |
| Temperature | 0…80 °C |
| Max. pressure | 6.0 bar |
| Min. conductivity | 50 µS/cm |
| Electrolyte | Gel containing potassium chloride with KCI reservoir |
| Diaphragm | PTFE ring diaphragm |
| Sensor shaft | Glass |
| Shaft diameter | 12 mm |
| Installation length | 120 ±3 mm |
| Fitting position | Vertical up to +25° |
| Thread | PG 13.5 |
| Electrical Connection | SN6 plug-in head, rotatable with a ProMinent cable |
| Enclosure rating | IP 65 |
| Process integration | Bypass: open outlet or return of the sample water into the process pipe, Inline: direct installation in the pipework|tubing; fixed or replaceable (retractable fitting), Tank, flume: immersion in the immersion pipe |
| Controllers | diaLog C, diaLog DACb, D1Cb/D1Cc, Compact, DMTa, DULCOPOOL, DULCOPOOL Pro, DULCOMARIN 3, diaLog X, AEGIS II, SlimFLEX 5a, AEGIS S |
| Typical installations | Municipal and industrial waste water, cooling water, process water: containing moderate amounts of solids without high levels of chemical contamination. |
| Resistance to | Disinfectant, solids content (turbid types of water) |
| Measuring principle, technology | Direct potentiometric measurement, 2 electrodes, Teflon ring diaphragm, polymer electrolyte, separate temperature measurement for temperature compensation needed |
| Order no. | |
|---|---|
| PHER 112 SE | 1001586 |
Datasheet: PDF
