Description

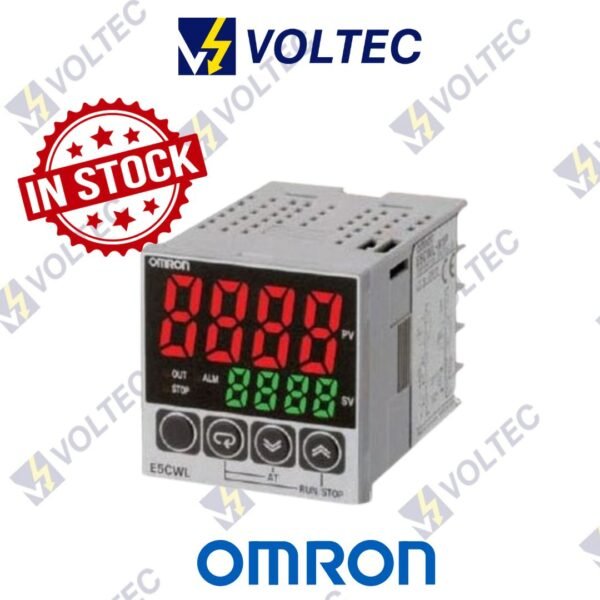

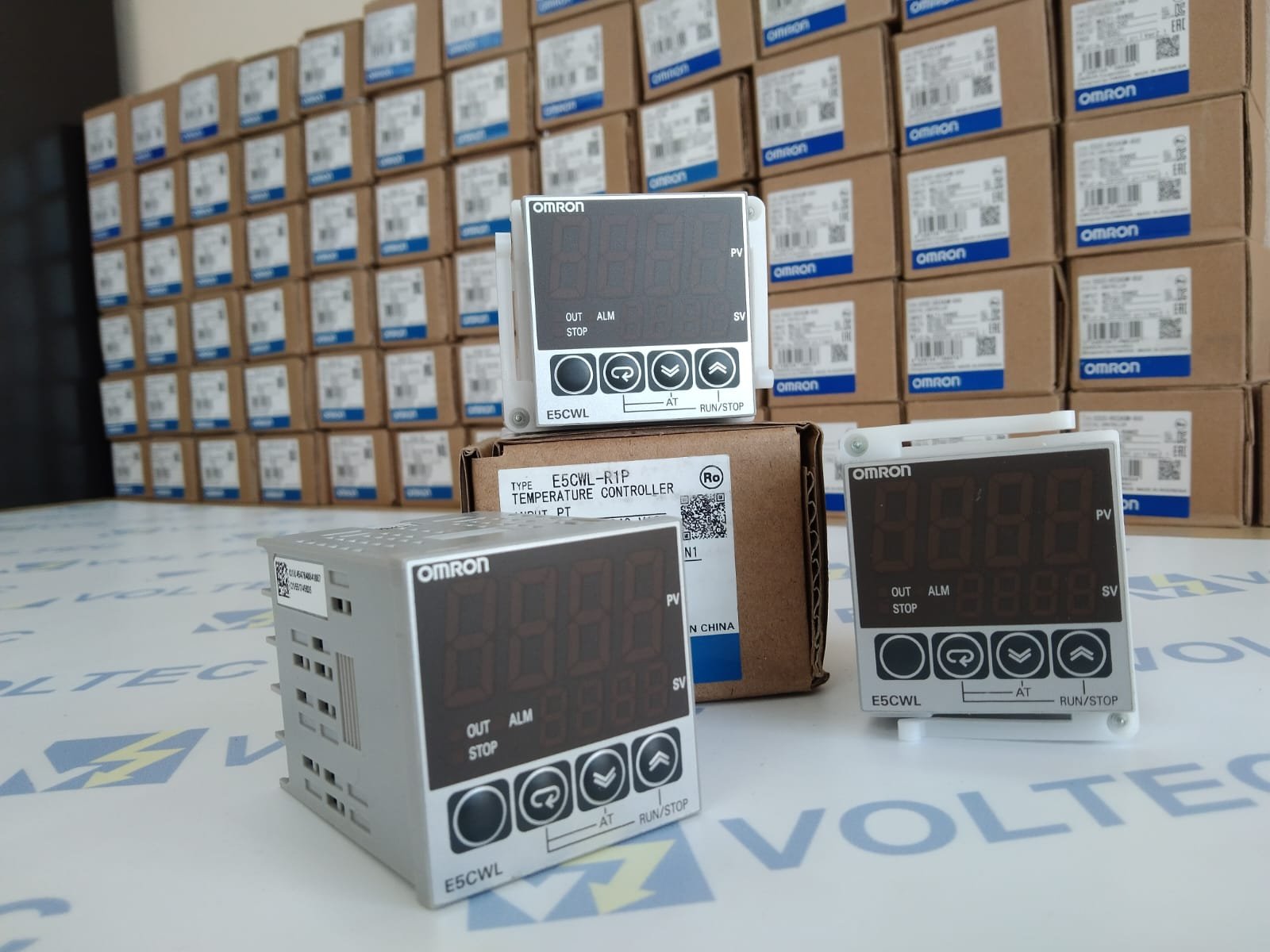

Omron Temperature Controller E5CWL-R1P

Temperature Controller

TECHNICAL DATA:-

• Product No. : E5CWL-R1P
• Product type : Temperature Controller
• Size : 1/16 DIN
• Network Number of Phases : 3 phases
• Power Supply Voltage : 100 to 240 VAC
• Input Type : Resistance thermometer
• Alarm Output : 1
• Control Output : Relay output
• Operating Voltage Range : 85% to 110% of rated supply voltage
• Power Consumption : 3.5 VA
• Alarm Output : SPST-NO, 250 VAC, 1 A
• Control Method : ON/OFF control or 2-PID control (with auto-tuning)
• Setting Method : Digital setting using front panel keys
• Other Functions : Temperature input shift, run/stop, protection functions, etc.
• Alarm Setting Range : -1999 to 9999 (decimal point position depends on input type)
• Sampling Period : 250 ms
• Insulation Resistance : 20 MO min. (at 500 VDC)
• Dielectric Strength : 2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge)
• Dimensions ( L x W x H ) : 4.8cm x 6cm x 4.8cm
• Weight : 0.11 Kg

MODEL:-

E5CWL-Q1P AC100-240,E5CWL-R1TC-100 AC100-240,E5EC-QR2ASM-800, E5EC-RR2ASM-800, E5CC-RX2ASM-800, E5CSL-RTC AC100-240, E5CC-QX2ASM-800, E5CWL-R1P AC100-240, E5CWL-Q1TC AC100-240,

DATA SHEET:-PDF
